FS-30W High Power Blue Laser Source
Introducing our latest innovation, the Laser Module for Galvo Scanners. With powerful 450nm laser diodes, this module offers exceptional performance for a wide range of applications. Its small, square spot, ensures pinpoint accuracy in your laser scanning tasks. Designed with a compact form factor, this module saves space without compromising on power or quality.
Warning: Last items in stock!

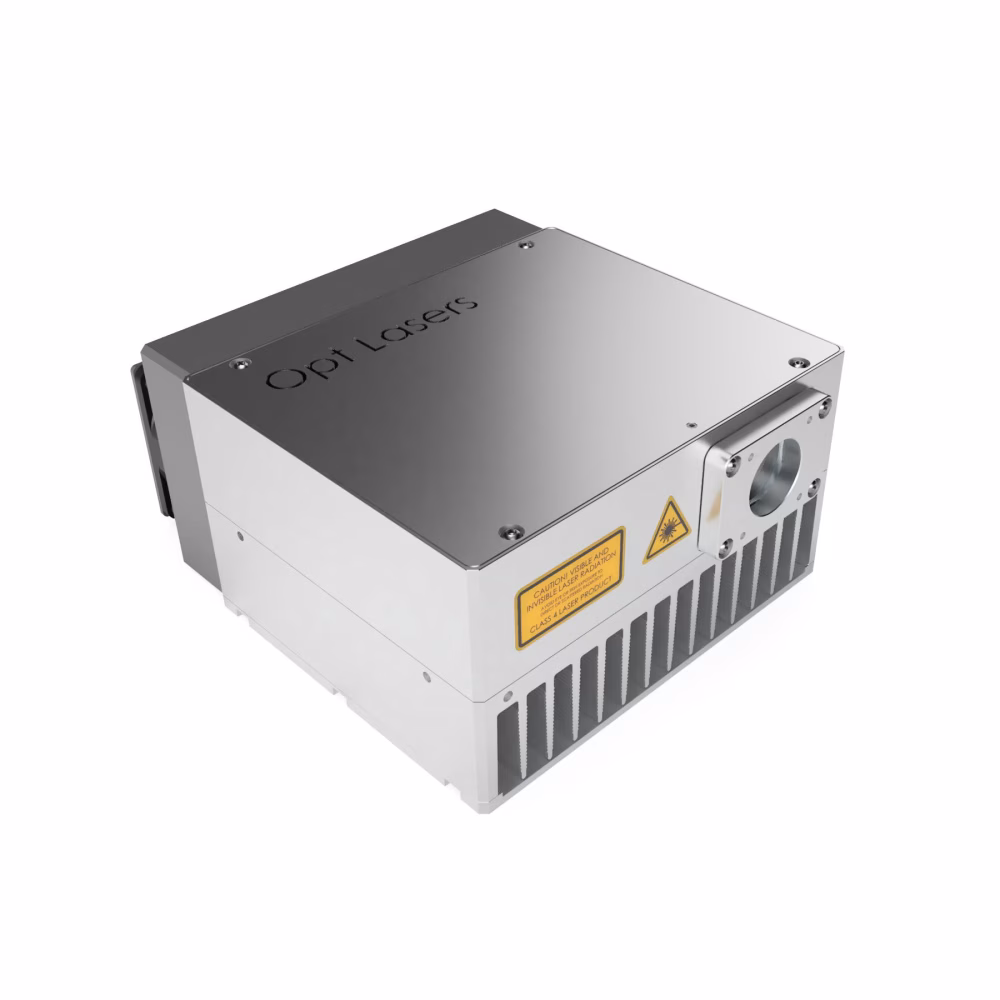

FS-30W High Power Blue Laser Source is a new design of a high-power multi-laser head. It uses new technology for astigmatism compensation of semiconductor laser beams. Thanks to our sophisticated optical solution it provides the possibility to focus output beams to a single spot of a small size, even with a focusing system with a long focal length. High focusing capability of the output beam makes the module especially suitable for use with galvo scanners.
Read more about Galvo Scanning Systems
- High Optical Power
- High Brightness and Collimated Laser Beam
- Integrated Laser Diode Driver
- Compact Design
- High Thermal Stability
- Long Lifetime
- Large Modulation Bandwidth
- Organic Material Labeling/Marking/Cutting
- Metal Marking, Welding
- Electronic Components Soldering
- Laser Powder Sintering
- Engraving on Metals and Organic Materials
- Underwater Material Processing
The beam spot of FS-30W Blue Laser Source is single mode in fast axis (horizontal axis) and multimode in slow axis (vertical axis).
- Laser beam focused with 170mm focusing lens;
- Beam Profiler placed in the beam waist plane;
- Beam waist plane defined as the highest power density plane;
- Laser operated in a quasi-CW mode with 100Hz frequency and 1ms pulse duration
FS-30W Blue Laser Source is built with multiple laser diodes, each of which emits slightly different spectrum. As a result, the emission spectrum of the laser module is relatively broad. For applications where narrower spectrum is required, laser diodes can be wavelength tested prior to production. This meticulous testing ensures that when the laser diodes are combined within the module, their individual spectra align to create a matched spectrum.
Thermal processes in the laser head cause thermal drift of laser light power. Until the thermal equilibrium of the device is reached, power of the output light beam changes slightly. The FS-30W Laser Source requires up to 30 minutes of working to stabilize the level of the emitted light power. Power fall could reach 5% during the first half hour of working. After that the power stabilizes and next flows are caused by laser diode aging.
Typical Rise and Fall Time
The laser module is integrated with a driver that provides power supply required by lasers. The driver can work in continuous and pulse modes. In the continuous mode the light power depends on the voltage level fed into the analog modulating input. Modulation bandwidth of this input is limited to a frequency range of 0-500kHz; In the pulse mode the light can be modulated with voltage pulses fed into the digital modulating input. Laser light pulse duration depends on the modulating voltage pulse duration. Highest possible pulse repetition rate is determined by rise and fall time of the light pulses on the output of the laser module. For the FS-30W laser source, the typical value of the rise and fall time is less than 1.5μs and F_pmax equals 300kHz.
|Center Wavelength [nm]||450||at 25 deg. C. base temperature|
|Optical Power [W]||30||at 25 deg. C. base temperature|
|Typ. Beam Size [mm, @ 1/e2]1||14 x 14||Measured at output aperture, criteria 1/e2 of peak intensity|
|Typ. Full Angle Beam Divergence [mRad, @ 1/e2]1||0.8||Calculated for far-field, criteria 1/e2 of peak intensity, full angle|
|Focused Spot Size [um]||120 x 130||Vertical x Horizontal axis, measured with 170 mm focusing lens|
|Power Stability over 2h, %, with 10 min. warm up||< ±5||Over 2h at CW; 15 min. warm up time|
|Lifetime||10 000 h|
|Modulation Input 1||0 - 5 V||Analog|
|Modulation Input 2||0 - 24 V||PWM / TTL; above 2.8V - high state|
|-3 dB Bandwidth Modulation [kHz]2||500|
|Softstart Time [ms]||2000|
|Rise Time [us]||<1.5||at 10kHz 50% SQR wave, Us=24V DC|
|Fall Time [us]||<1.5||at 10kHz 50% SQR wave, Us=24V DC|
|Operating Temperature [°C]||10 - 40|
|Dissipated Power [W, bottom surface]||<150|
|Max power consumption [W]||200||at Us=24V|
|Module dimensions (L x W x H) [mm]||182 x 145 x 115|
|Module Weight [kg]||3|
At Opt Lasers, we are capable of designing customized solutions for your application, feel free to contact us.
