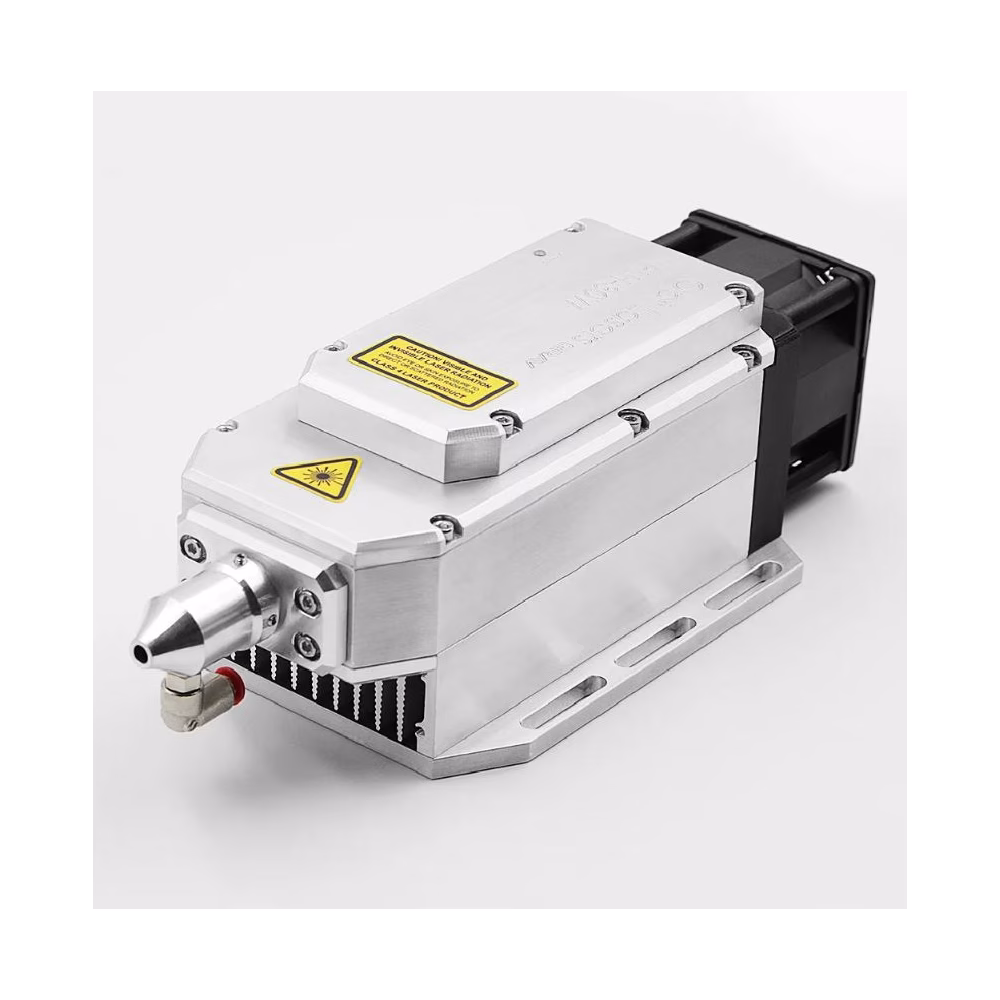

High-Performance Universal CNC Laser Upgrade Kit with PLH3D-30W Engraving Laser Head

While checking out, please add a note/comment to your order stating what CNC machine you have precisely.

First Six-Laser-Diode Engraving Laser Head with Cutting-Edge Processing Capabilities

This Universal Laser Upgrade Kit with PLH3D-30W is an industrial-grade product, meaning it lasts 20-200 times longer than other blue laser engraving modules and CNC laser engravers on the market. With a genuine output of 30 W of optical power, this laser head is highly-effective at engraving wood and wood-based materials, able to produce 0.118" [3 mm] wide deep-engraved curves (or lines) in a single pass. Used at the focus spot, it can also engrave very fine details with very high-precision, producing top-notch quality items with exceptionally uniform and well-defined features.

Notably, the PLH3D-30W features a specialized anti-back-reflection system. This system safeguards its blue laser diodes against beam reflection from highly-reflective metals, which can otherwise shorten the lifespan of the laser diodes. This makes it a particularly suitable laser choice for engraving various steel alloys including stainless steel, carbon steel, tool steel, high-speed steel as well as Titanium. With PLH3D-30W you don't have to tilt the metal before laser engraving it to avoid back-reflection.

PLH3D-30W can engrave a variety of materials at the maximum operational speeds of popular CNC machines, 3.15-5.90 in/s [80-150 mm/s] and ensures efficiency and precision in every laser engraving task you undertake. Its exceptional performance is also notable in cutting various thin materials, excelling in laser cutting leather, textiles, and wood or wood-based materials up to 6 mm thick. This 30 W CNC laser head also shows significant efficiency in cutting thin materials such as leather, textiles, and wood or wood-based materials up to quarter-inch [6 mm] thick. In addition, this compact and cutting-edge blue laser engraver is highly effective with materials that infrared lasers find challenging, thanks to its utilization of blue laser light.

This Universal Laser Ugrade Kit includes everything to make PLH3D-30W swiftly adaptable to nearly any CNC machine. Overall, this lightweight, high-power, cost-efficient, and user-friendly laser head is the ideal tool for high-volume industrial applications, small businesses and demanding professonals alike.

Product Features

• Unrivaled Optical Power in its Class – Utilizes multiple high-power blue laser diodes to scale optical power.
• Anti-Back-Reflection System – An advanced Anti-Back-Reflection system makes it particularly suitable for laser engraving Titanium and various steel alloys, including stainless steel, tool steel, carbon steel and high-speed steel varieties. This system safeguards your laser diodes from back-reflection, which can otherwise damage your laser diodes, and result in premature death. With this laser head, you don't need to tilt a highly-reflective material before engraving it with your laser engraver any longer.
• Powered by Blue Laser Diodes - Unlike infrared light, blue light is more easily absorbed by numerous industrial materials. This directly translates to several advantages including reduced power consumption and more compact heat sinking.
• Precision-Grade Aspheric Lenses – Each laser module contains four precision-molded lenses, each of which is virtually free of imperfections. Coupled with a vacuum-sputtered multi-layer anti-reflection coating, this design yields superior optical performance and a spectacular power density of 1.5 MW/cm².
• Synergy of Power and a Tight Beam Spot – The optical system combines the beams from multiple high-power laser diodes and focuses them to a tight spot. It results in a high power density giving the versatility to engrave diversified materials including stainless steel, tool steel and Titanium.
• Lightweight Design Mounts to Nearly any CNC Machine – Featuring a lightweight, Aluminum body that makes the laser weight less than 1800 g. As a typical CNC spindle weighs approximately 1.8 kg, CNC machines can operate it effortlessly.
• Simple Integration - Can be set-up on nearly any CNC machine since it accepts both analog and PWM CNC signals.
• Instant-On Power – No warm-up time.

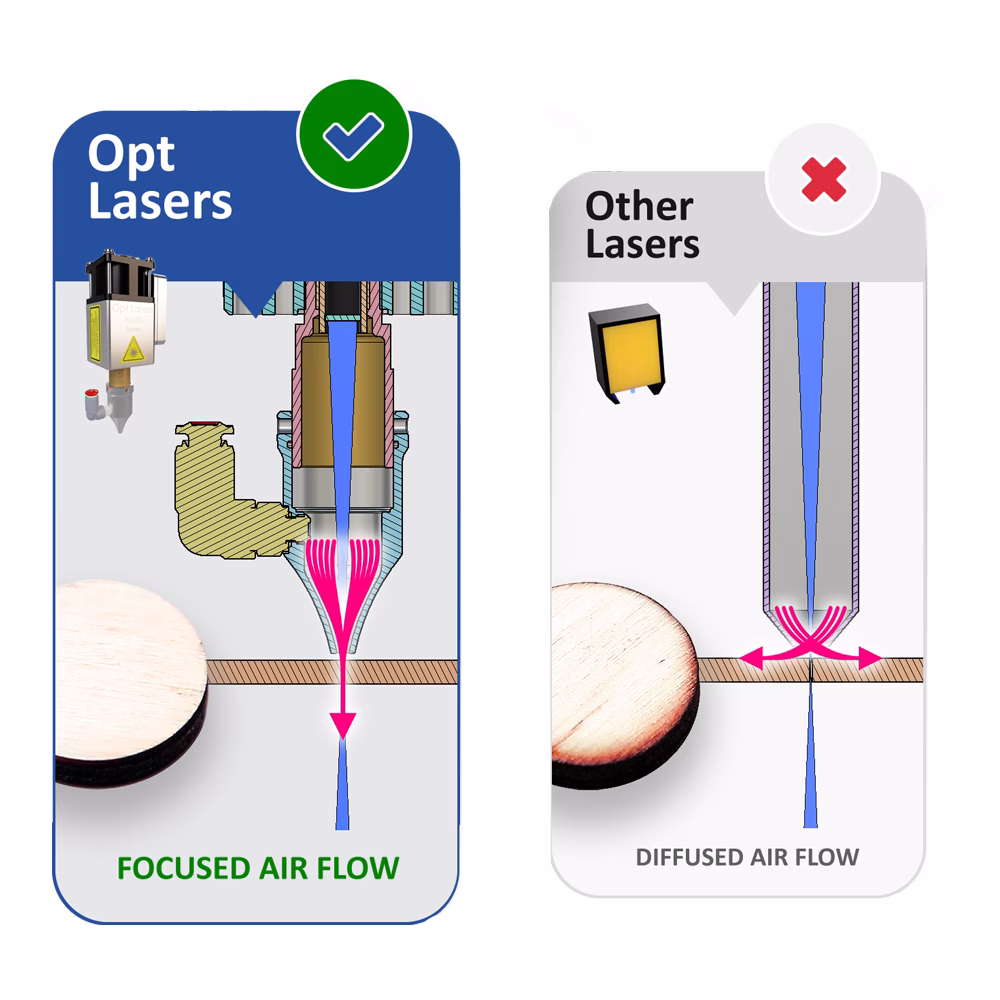

• High-Pressure Air Nozzle Prevents High Upkeep – With the high-pressure air nozzle, you can clean the lens 10x less often. The pressurized air also speeds up the cutting and engraving process by removing smoke and preventing excessive dirt build-up on the lens. In addition, the directed airflow cools down the working site, resulting in a lack of defects and a uniform engraving contrast.

• Integrated Control Electronics – Designed to prevent your laser diodes from dying prematurely, the control electronics are integrated within the laser module. With no redundant wiring, you don’t need to worry about dangerous inductance effects.

• Longer Lifetime – Blue laser diodes have longer lifetimes because they don’t suffer from random failure and age more slowly at higher temperatures. The typical lifetime of the laser’s blue laser diodes is equal to 20,000 hours. In contrast, a lifetime of an average glass CO2 tube laser cutter and engraver equals 3,000 hours.

Product Specifications

Typical Cutting and Engraving Speeds with 30W Laser Head
