1 x PLH3D-XT8 45W Cutting and Engraving Laser Head
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting
Quantity:
Total:
Total products:
Total shipping: To be determined
Total:
X-Carve Pro PLH3D-XT8 Laser Upgrade Kit
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting

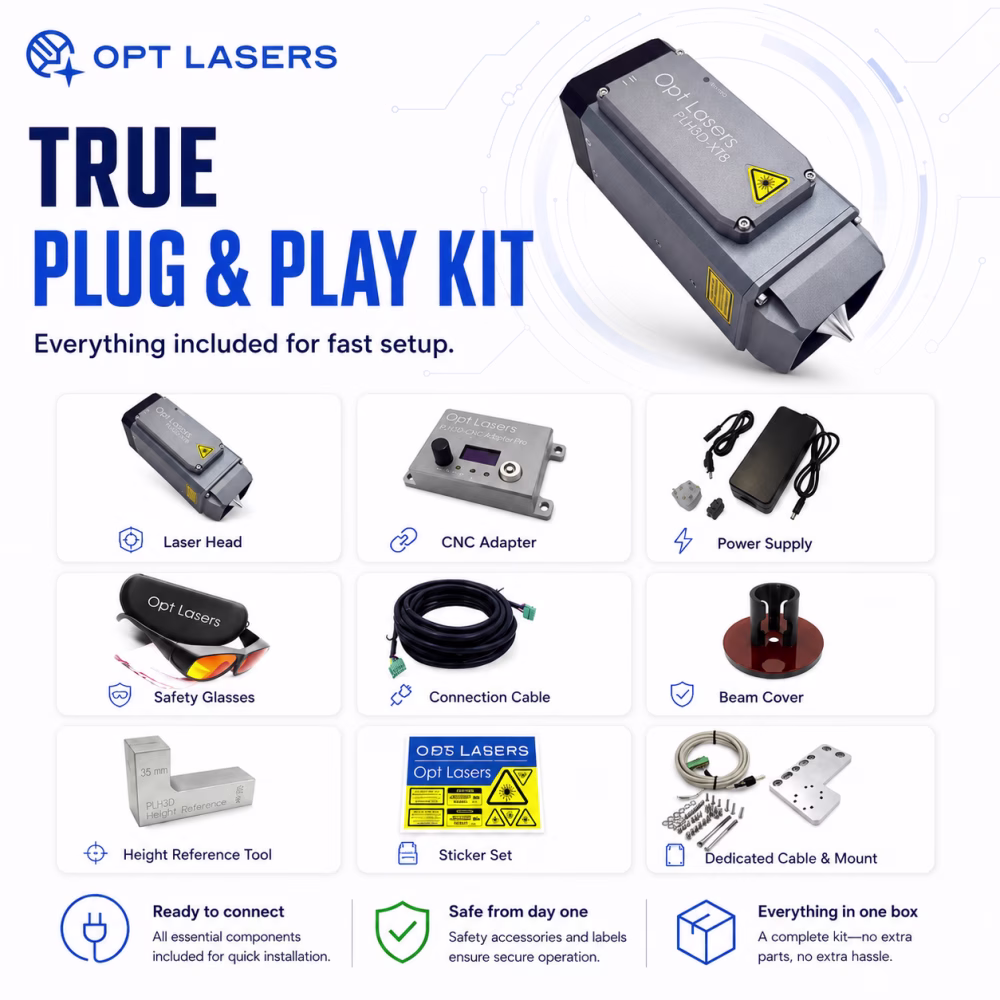

Includes: Laser Head, Air Nozzle, CNC Adapter Pro, Laser Safety Glasses, Beam Cover, Mount and More.
Available on order upon request
|
LaserDock PRO - Laser to CNC Magnetic Docking Station |
|
Lightburn CNC Software License |
|
|
|
|
LaserDock PRO - Laser Side Part Only |
|
|
|
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting

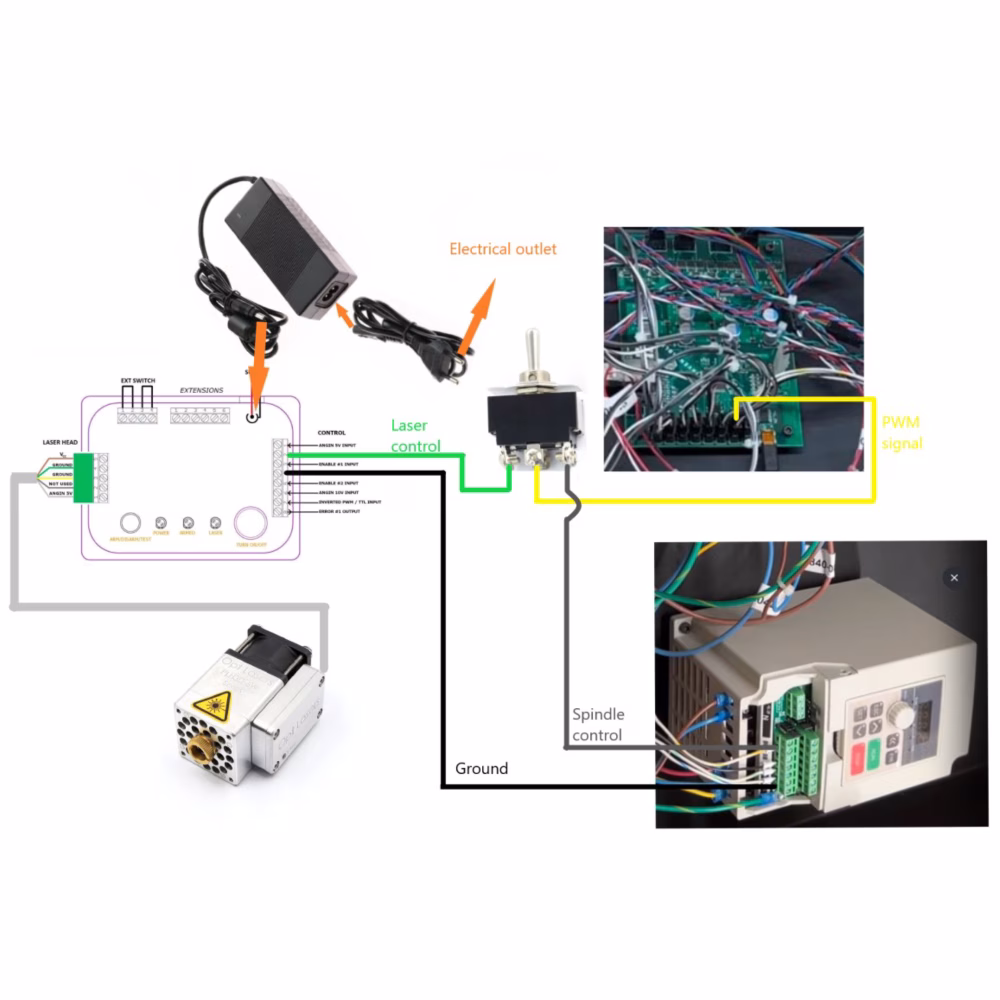

✔ Provides communication between CNC machines and laser heads.
✔ Ensures an additional layer of safety for users and laser heads.
✔ For powering the PLH3D-Series laser heads via the PLH3D-CNC Adapter Pro.
✔ Delivers a reliable 24V 8A output.
✔ Shipped with a plug compatible with the standards used in the destination country.
✔ Laser Safety Glasses rated at OD 7+ over the range of 190 to 540 nm.
✔ Reduce the risk of light entering the user’s eyes from backscattered laser light.
✔ Reduces light reflection from the processed material and ensures optimal cooling of the laser head.
✔ Mountable on the High Pressure Air Assist Nozzle.
✔ Compact tool for easy and quick focal distance adjustments for PLH3D-Series laser engravers.
✔ Cable for connecting PLH3D-Series lasers heads or LaserDock Pro to PLH3D-CNC Adapter Pro.
✔ Transfers power and control signals to the laser head.
✔ Set of CNC laser stickers.
✔ Included in every laser kit from Opt Lasers.
✔ Provides connection between PLH3D-CNC Adapter and X-Carve X-Controller.
NOTE: Due to changes in X-Carve mounting holes, this kit currently does NOT include mount.
Customers will need to mill their own mount.
Looking to upgrade your CNC machine with laser capabilities? Our Hyper-Performance XT8 CNC Cutting and Engraving Laser Heads are the ultimate solution. Crafted by the industry's leading manufacturer and concept creator of laser heads, our impressive XT8 laser heads deliver unparalleled performance.
The PLH3D-XT8 laser head incorporates Opt Lasers' patented multi-laser diode technology, driving its cutting-edge capabilities. This innovative approach ensures unparalleled performance and precision, setting a new standard in laser processing.
This comprehensive X-Carve Pro kit includes all essential components such as Laser Safety Glasses, OptiShield Beam Cover, PLH3D-CNC Adapter Pro, and an aluminum mount for easy integration with X-Carve Pro CNC machines. Furthermore, the kit is equipped with X-Carve Pro signal cable, signal wires and a PSU, ensuring compatibility with the X-Carve Pro CNC controller.
Trust in the best – this kit is your all-in-one Plug&Play package, delivering top-notch performance and hassle-free setup for your machine, from us, Opt Lasers.
Unmatched Focus Depth: With its remarkable focus depth and extended beam waist, the XT8 eliminates the need for constant adjustments and allows single-pass cutting, speeding up your work.
Precision in Action: The PLH3D-XT8's laser spot size below 200 um allows you to achieve precise details for artistic work and effortlessly cut through materials like 15 mm wood.
Grayscale Engraving and Full-Power Cutting: Switch between two modes: 50% power for detailed engraving or high-speed cutting with 100% power, swiftly adapting to various materials and applications.
Integrated Air-Assist Nozzle: Enhance cutting efficiency with our integrated nozzle. Enjoy up to six times faster cutting speeds and reduced heat-related damage to the processed material.
Copper Heatpipe Heatsink: Our advanced cooling technology ensures optimal cooling performance and great longevity by efficiently conveying heat to an additional heatsink.
Operational Safety: Stay informed with our signaling LED, indicating the laser's armed status and providing overheating alerts for added safety and proper temperature management.
Superfast Built-In Driver: Experience unmatched performance with our integrated driver, ensuring precise engraving and reliable results. The close proximity of the laser diodes to the driver enables high-frequency current modulation.
Full-Metal Body: The laser's housing is fully constructed from durable metal, ensuring robust protection and enhanced longevity for the device.
Included in the Kit
Optional - add at top of the page
Included in the Kit
Included in the Kit
Included in the Kit
Included in the Kit
Optional - add at top of the page
Opt Lasers leads in innovation by being the first to integrate a superfast laser diode driver directly into the cutting and engraving laser head. The built-in driver, the heart of the laser head, ensures enhanced protection for the laser diode. As a manufacturer of laser diode drivers, Opt Lasers has leveraged years of experience to create a highly efficient driver with low power consumption and minimal heat production. This makes using the cutting and engraving lasers at high speeds feasible, even for small details or tight radius turns, thanks to the driver's ability to process all necessary signals swiftly. Moreover, with a maximum driver current of 6A, operating it at 3-4A ensures longevity and reliability, providing an offset for extended driver life.
PLH3D-XT8 | |
---|---|
Maximum Optical Power | 45 W |
Dimensions of Laser Head (L x W x H) | 76 x 89 x 194 mm (3 x 3,5 x 7,64 in.) |
Weight of Laser Head, Typ. | 1050g (2.31 lb.) With LaserDock: 1230g (2.71 lb.) |
Flow Rate of Fan | 92 m3/h (53 CFM) |
Fan Noise | 58 dBA |
Mounting Hole Pattern | 5x 4 holes, 24 x 15 mm (0.94 x 0.59 in.) |
Mounting Hole Type | M3 x 0.5 x 3 mm |
Max. Ambient Temperature | 40°C (104°F) |
Modulation Input | PWM/TTL, 0 – 24 V |
Recommended PWM Base Frequency | 1 – 5 kHz |
Max. Modulation Bandwidth | 30 kHz |
Modulation Input Impedance | >1 kΩ |
Power Supply Unit Voltage | 24 V |
24 V PSU Min. Current | 8 A |
Maximum Power Consumption | 170 W |
Material | Operation Type | Thickness | Speed | Laser Power | Passes |
---|---|---|---|---|---|
Wood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Engraving | N/A | 70 mm/s (165 inch/min) | 20% | 1 | |
Plywood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Cutting | 3 mm (0.118") | 22.5 mm/s (53.1 inch/min) | 100% | 1 | |
Cutting | 4 mm (0.157") | 12 mm/s (28 inch/min) | 100% | 1 | |
Cutting | 6 mm (0.236") | 6 mm/s (14 inch/min) | 100% | 1 | |
Cutting | 10 mm (0.394") | 3 mm/s (7 inch/min) | 100% | 1 | |
High-Density Fiberboard (HDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Cutting | 3 mm (0.118") | 12 mm/s (28 inch/min) | 100% | 1 | |
Medium-Density Fiberboard (MDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Cutting | 7.5 mm (0.295") | 4 mm/s (9.4 inch/min) | 100% | 1 | |
Balsa | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Cutting | 12 mm (0.472") | 40 mm/s (94 inch/min) | 100% | 2 | |
Pinewood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
Cutting | 15 mm (0.591") | 3 mm/s (7 inch/min) | 100% | 1 | |
Veg-Tan Top-Grain Pigskin Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 | |
Hard Veg-Tan Full-Grain Cowhide Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
Cutting | 4 mm (0.157") | 18 mm/s (42.5 inch/min) | 100% | 1 | |
PU (Polyurethane) Faux Leather | Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 |
White Marble | (Deep) Engraving | N/A | 52 mm/s (120 inch/min) | 100% | 1 |
Slate | Engraving | N/A | 140 mm/s (330 inch/min) | 100% | 1 |
Black Acrylic | Cutting | 2 mm (0.079") | 7 mm/s (17 inch/min) | 100% | 1 |
Cutting | 5 mm (0.197") | 6 mm/s (14 inch/min) | 100% | 3 | |
Cutting | 10 mm (0.394") | 6 mm/s (14 inch/min) | 100% | 4 | |
Orange Transparent Acrylic | Engraving | N/A | 220 mm/s (520 inch/min) | 5% | 1 |
Red Acrylic | Cutting | 2 mm (0.079") | 4.2 mm/s (9.9 inch/min) | 100% | 1 |
Green Acrylic | Cutting | 2 mm (0.079") | 2.8 mm/s (6.6 inch/min) | 100% | 1 |
Cotton | Engraving | N/A | 180 mm/s (425 inch/min) | 15% | 1 |
Jeans | Cutting | 0.5 mm (0.0197") | 255 mm/s (602 inch/min) | 100% | 1 |
High-Density Reinforced Nylon | Cutting | 3.6 mm (0.142") | 6 mm/s (14.2 inch/min) | 100% | 1 |
White Polyester | Cutting | 0.2 mm (0.00787") | 60 mm/s (142 inch/min) | 100% | 1 |
White High-Density Polyester | Cutting | 0.4 mm (0.0157") | 25 mm/s (59 inch/min) | 100% | 1 |
Cordura | Cutting | 0.35 mm (0.0138") | 150 mm/s (354 inch/min) | 100% | 1 |
Cutting | 0.5 mm (0.0197") | 95 mm/s (224 inch/min) | 100% | 1 | |
Felt | Cutting | 4 mm (0.1575") | 70 mm/s (165 inch/min) | 100% | 1 |
Polyfoam | Cutting | 40 mm (1.575") | 5 mm/s (12 inch/min) | 100% | 1 |
Cutting | 40 mm (1.575") | 15 mm/s (35 inch/min) | 100% | 3 | |
EVA Foam | Cutting | 3 mm (0.118") | 140 mm/s (331 inch/min) | 100% | 1 |
Cutting | 5 mm (0.197") | 85 mm/s (201 inch/min) | 100% | 1 | |
Polyurethane (PU) Foam | Cutting | 10 mm (0.394") | 88.5 mm/s (209 inch/min) | 100% | 1 |
Carbon Fiber | Cutting | 0.5 mm (0.0197") | 15 mm/s (35.4 inch/min) | 100% | 1 |
Glass Fiber | Cutting | 0.7 mm (0.0276") | 5 mm/s (11.8 inch/min) | 100% | 1 |
Stainless Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
(Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 | |
Tool Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
(Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 |
