YoraHome PLH3D-XT-50 Laser Upgrade Kit
Specs: 6W Optical Power, Ultra HD 550DPI 45um spot, max wood cutting thickness 3 mm (⅛”)
Best For: Very Detailed Engraving, Thin Materials Cutting
Includes: Laser Head, PLH3D-CNC Adapter, Mount and Screws, PSU, Wiring, Air Nozzle, Height Reference Tool
|
LaserDock PRO - Laser to CNC Magnetic Docking Station |
|
|
LaserDock Magnetic Docking Station |
|
OptiShield - PLH3D Laser Engraver Beam Cover |
|
|
|
|
|
|
|
Lightburn CNC Software License |
Specs: 6W Optical Power, Ultra HD 550DPI 45um spot, max wood cutting thickness 3 mm (⅛”)
Best For: Very Detailed Engraving, Thin Materials Cutting
Includes: Laser Head
✔ Provides communication between CNC machines and laser heads.
✔ Ensures an additional layer of safety for users and laser heads.
✔ Performance accessory for XT-Series laser heads.
✔ Increases laser processing speeds up to 6.5 times and decreases heat related damage to the material.
✔ Protects laser optics from smoke and debris.
✔ Laser Safety Glasses rated at OD 7+ over the range of 190 to 540 nm.
✔ Reduce the risk of light entering the user’s eyes from backscattered laser light.
✔ For powering PLH3D-6W Series laser heads via PLH3D-CNC Adapter.
✔ Delivers a reliable 19V 2.5A output.
✔ Includes a Wall Plug adapter.
✔ Compact tool for easy and quick focal distance adjustments for PLH3D-Series laser engravers.
✔ Set of CNC laser stickers.
✔ Included in every laser kit from Opt Lasers.
✔ Provides power supply and signal connection between PLH3D-CNC Adapter and PLH3D-6W Series laser heads.
✔ Equipped with 5-pin detachable terminal connectors.
✔ Provides connection between PLH3D-CNC Adapter and YoraHome Controller.

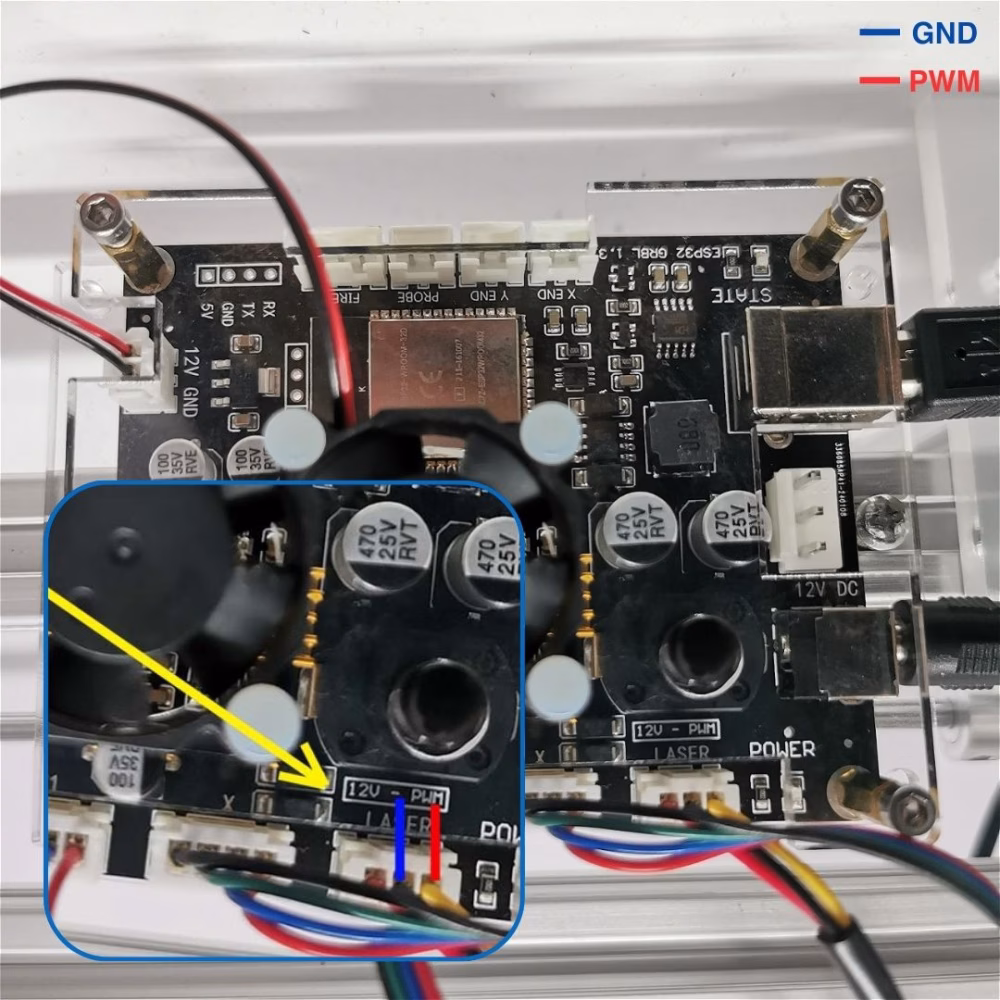

Unlock the full potential of your CNC machine with Opt Lasers' comprehensive Plug&Play PLH3D-XT-50 laser upgrade kits. Expertly engineered for compatibility with various CNC controllers, these kits ensure seamless integration and optimal performance. Each component is meticulously crafted to guarantee reliability and efficiency with your controller. You can find the wiring diagram in the gallery, making setup straightforward. Take your machine's performance to new heights with this all-inclusive upgrade. Compatibile with YoraHome CrossRiver 6060, SilverBack 6060, SilverBack 1X1M.
Great choice! This comprehensive OpenBuilds WorkBee CNC Laser Add-on kit with the XT-50 laser head, arguably the best single-laser-diode laser cutter and engraver on the market, is a perfect addition for your OpenBuilds WorkBee CNC machine. It contains everything you need for your OpenBuilds WorkBee CNC machine - from plug-and-play electronics for OpenBuilds WorkBee CNC controller, through mechanical mount to laser safety equipment.
You don’t need higher laser power for laser engraving wood. PLH3D-XT-50 can effortlessly laser engrave wood while being moved at maximum working speeds of popular CNC machines. In addition, XT-50 laser engraves with Ultra HD resolution and your eye would not see any difference if the focused beam spot was any smaller.
PLH3D-XT-50 laser heads are a great substitute for CO2 CNC lasers and can work with special engraving laminates, laser foils and many standard materials such as wood, rubber, cardboard, fabrics, leather, painted/anodized metal. The XT-50 lasers are also great for stainless steel and titanium marking.
Adjustable, Microscopic & Square Beam Spot 25 - 500 DPI - The XT-50 laser heads have adjustable beam spots, below 50µm at perfect focus. Adjusting the height increases the spot size up to 2mm, enabling Ultra HD resolution over 500 DPI or large-scale engraving down to 25 DPI.
High Power Density - The XT-50 laser heads achieve a small beam-spot size, increasing power density and enabling faster cutting and engraving. For example, the XT-50 can engrave (not just mark) stainless steel and tool steel.

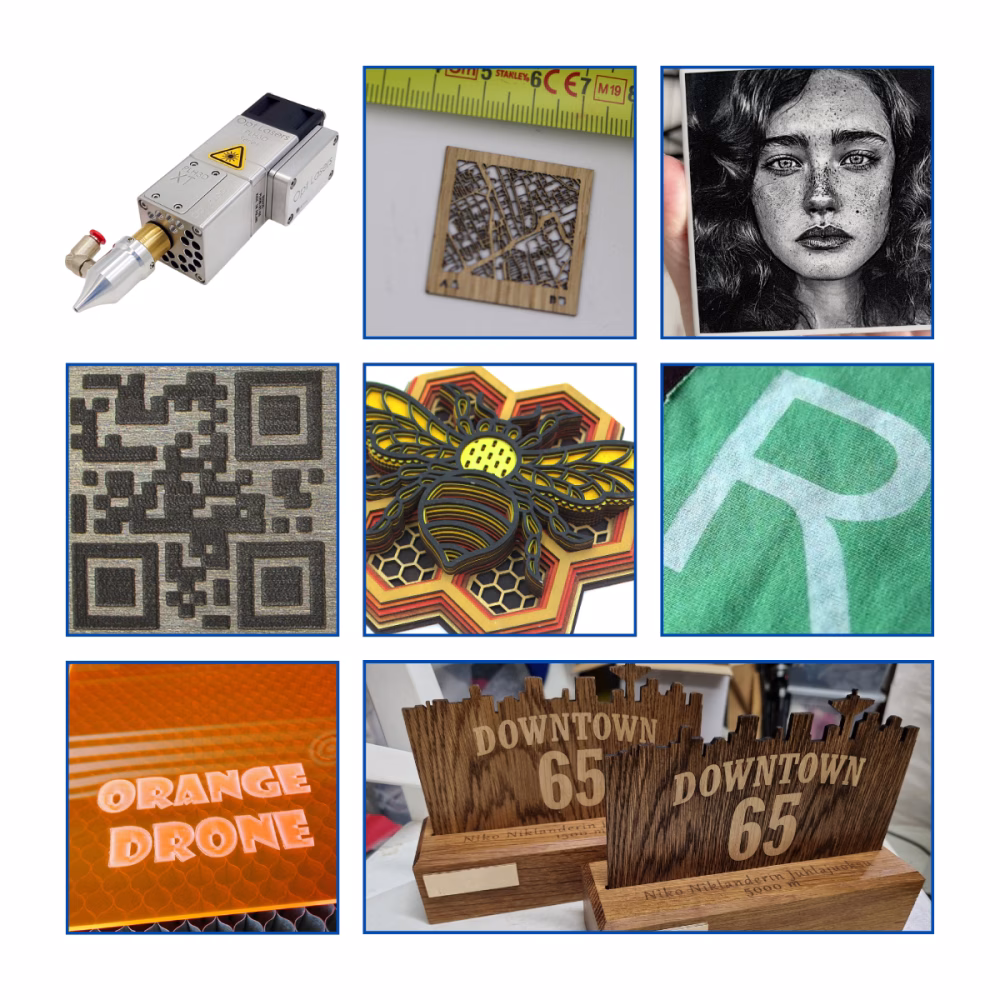

Cutting and Engraving - PLH3D-XT-50 blue laser allows to cut and engrave various materials such as wood, cardboard, rubber, paper, textiles, leather, plastic, balsa, plywood, and many others, as well as mark stainless steel, titanium and low heat conductance subtypes of steel.
Improved Safety - The cutting and engraving laser head is equipped with an “Armed” indication LED, signaling its connection to the power supply and providing alerts for overheating. Additionally, ambient temperature warnings ensure safe operation.
Factory Set Lens - Each laser head is shipped with a High-Resolution Triplet lens adjusted to focus at 60.0 mm. This distance is the best-optimized focus distance to start with.
Built-in Driver - A short connection between the laser diode and a driver ensures better protection for a diode, possibility of high-frequency current modulation as well as eliminates inductance effects during the switch-on.
No Additional Cooling Required - This lightweight laser requires no additional cooling. The XF+ laser's body acts as a heatsink, allowing it to work constantly for 24 hours, every day.
The Most Precise Laser Head on the Market - Thanks to our special optical design, the XT-50 reaches the highest precision, delivering unparalleled accuracy for detailed work.
(Optional accessory, add at the top of the page)
(Included in Plug&Play Kits)
(Included in Plug&Play Kits)
(Included in Plug&Play Kits)
(Included in Plug&Play Kits)
(Optional accessory, add at the top of the page)
PLH3D-XT-Series Engraving Laser Heads allow you to meet the biggest requirements, and broadly realize your needs in working with both soft and hard materials.
PLH3D-XT-Series engraving laser heads were devised as a series of specialized laser heads for engraving with extremely high resolution and cutting thin materials with ultra-thin lines. Based on our 6W-Series laser heads, XT-Series laser heads inherited all their advantages: versatility, compact dimensions and high-speed driver. The microscopic beam spot allows to make precise and very small size engravings in a wide variety of materials including stainless steel.
Stainless Steel | ||||
Operation | Feed Rate | Air Flow | ||
Engraving | 5mm/s (11.8 IPM) | 5L/min |
The 500 DPI capability allows for amazing quality engravings on materials like ceramic tiles. Higher power density reveals new cutting and engraving possibilities. Additionally, cutting and engraving processes are significantly faster comparing to laser heads without anamorphic optics.
Ceramic Tile | ||||
Operation | Feed Rate | DPI | ||
Engraving | 2500/min | 423 |
Thanks to their spot width of less than 50µm, PLH3D-XT-50 laser heads allow cutting with a thin, even cut line. For comparison, a typical human red blood cell is 5-10µm in size, and the diameter of a single human hair is 50-200µm.
Coal Duplex | ||||
Operation | Thickness | Feed Rate | Air Flow | |
Cutting | 1mm (0.0393") | 500 mm / min</td> | 10-20L/min |
PLH3D-XT-10 | PLH3D-XT-50 | |
---|---|---|
Optical Output Power | 0.5W | 6.0W |
Wavelength | 405 | 450 |
>Beam Spot Size | 10 µm by 4 µm | 50 µm by 4 µm |
Resolution for Laser Engraving Applications | 3100 DPI | 500 DPI |
Dimensions of Laser Head (L x W x H) | 40 x 55 x 140 mm (1.6 x 1.7 x 5.51 in.) |
|
Weight of Laser Head, Typ. | 300g | |
Flow Rate of Fan | 43 m3/h (25 CFM) | |
Fan Noise | 58 dBA | |
Mounting Hole Pattern | 4 holes, 24 x 15 mm (0.94 x 0.59 in.) |
|
Mounting Hole Type | M3 x 0.5 x 4.5 mm | |
Max. Ambient Temperature | 40°C (113°F) | |
Modulations Inputs | 2 | |
Modulation Input 1 | Analog/TTL/PWM, 0 – 5 V |
|
Modulation Input 21 | TTL/PWM 0 – 24 V | |
Recommended PWM Base Frequency | 5 – 10 kHz | |
Max. Modulation Bandwidth | 30 kHz | |
Input Impedance of 1 and 2 | >1 k-Ω | |
Power Supply Unit Voltage | 12 – 24 V | |
12 V PSU Min. Current | 2.5 A | |
24 V PSU Min. Current | 1.25 A | |
Max. Power Consumption | 20 W | 30 W |
