PLH3D-6W-XF+ High Performance Plug&Play Laser Kit with Laser Dock for Shapeoko 4-5 & Shapeoko Pro

Universal Shapeoko PLH3D-6W-XF+ Laser Upgrade Kit

Specs: 6W Optical Power, SD 85 DPI 300um spot, max wood cutting thickness 6 mm (¼”)

Best For: Standard Engraving, Soft Materials Cutting, MultiPass Material Cutting

Includes: Laser Head, Laser Dock, PLH3D-CNC Adapter, Mount and Screws, PSU, Wiring, Air Nozzle, Height Reference Tool

In stock

$680.00 tax excl.


$948.00 tax excl.

Our payments
SKU: 001846
GTIN: 5902693110811

Select Additional Kit Components

Laser to Machine Mount

CNC Control Software

Items included in the kit:

Product description

Please note that since 13 December 2022, the kit-included mount has been swapped - from our Shapeoko 1-3 mount (compatible with XT and XF+ laser heads) to our Shapeoko 4+ & Shapeoko Pro mount (compatible with PLH3D-15W, XT, XF+ and LaserDock). You can now order the Shapeoko 1-3 mount in the Additional Kit Components section where the Shapeoko 4+ and Shapeoko Pro laser mount was before. Alternatively, you can add a note to your order (on the bottom of the address tab) "Please ship with Shapeoko 1-3 mount (SKU: 1455) instead of the new mount (SKU: 2823)."

Universal XF+ Shapeoko Laser

Our Universal Shapeoko Laser Upgrade Kit enables you to upgrade your Shapeoko CNC Series machine (Shapeoko, Shapeoko 2, Shapeoko 3, Shapeoko 4, Shapeoko Pro XL and Shapeoko Pro XXL) with high precision laser engraving and laser cutting functionalities. It is a professional laser upgrade kit made with the highest quality components. The mounting and wiring are designed with the focus on the easiness of installation and the quality of user experience.

High-Performance Shapeoko Laser for all Shapeoko Series CNC Machines

Benefits offered by Opt Lasers for the first time on this market.

5-year Opt Lasers Warranty
Free Shipping for Individual Customers
Lifetime Technical Support
#1 in Customer Support
30-Day Satisfaction Guarantee for Returns
Optional Collision or Laser Head Drop Insurance
Product Originating from the Laser Head Concept Creator
Made in Poland, EU

Advantages of XF+ Shapeoko Laser Upgrade

  • Simple user-focused installation on all Shapeoko Series CNC machines. PLH3D-CNC Adapter ensures compatibility with all future releases of Shapeoko Series CNC machines. As a result, you will still be able to use your XF+ shapeoko laser if you get an upgrade to new releases of Shapeoko Series.
  • Laser Diode Driver is integrated inside the laser head for flawless performance.
  • Compatible with the High-Pressure Air Assist Nozzle, which can increase your laser processing speed by up to 6.5 times compared to the base speed (typically doubling or tripling your laser cutting and engraving speed).
  • Compatible with the uSpot Lens Upgrade, which significantly increases the optical power density, the resolution obtained as well as boosts laser engraving and laser cutting speed by up to 2.5 times the base speed (typically allowing you to achieve 40% to 80% higher throughput).
  • The kit includes the LaserDock laser docking station, which allows you to quickly attach and detach your XF+ shapeoko laser. The LaserDock ensures that the laser head is always placed back at the exact same spot. Repeated laser attachment and disattachment is not problematic anymore as it doesn’t require working distance calibration reruns.
  • The achievable precision allows you to complete projects that are simply not possible with just a spindle. The majority of our laser head users earn money with their laser units.
  • No additional cooling is needed, the XF+ shapeoko laser incorporates the strongest fan for its size to provide the best cooling and to remove smoke.

What's the difference between 6 W and 7+ W Shapeoko Laser Units that are available on the market?

Our Shapeoko Laser Heads are based on the highest power laser diodes that are available on the market. Therefore, if you see any cnc laser module that uses a single laser diode with an optical power rated at 7 W or 8+ W, it means its laser diode has been overdriven with additional current to increase the power rating. This, however, has an adverse effect on the unit longevity. From the user's perspective, it is better to use a 6 W shapeoko laser, because you will achieve much higher yield over our 6 W laser head's lifetime. Nevertheless, if you are happy with a shorter laser diode lifespan, we could overdrive the laser diode for your shapeoko laser upgrade to 7 W upon request.

All Vital Elements are Plastic-Free to Ensure User Safety While Using Your Cutting Laser for Shapeoko

Our XF+ Shapeoko Laser, just like the rest of our laser heads and other products, does not contain crucial elements that are made of plastic. Being aware of what any Shapeoko CNC machine operation involves as well as its working conditions, we made a decision not to use any plastic in all crucial parts to ensure proper user safety. This is especially important for shapeoko laser housing and assembly parts. While it might seem that plastic elements are safe for use, they can easily bend or break. If that happens, the Shapeoko CNC user has little to no control over where the scattered or direct laser radiation goes, which constitutes a major safety hazard.

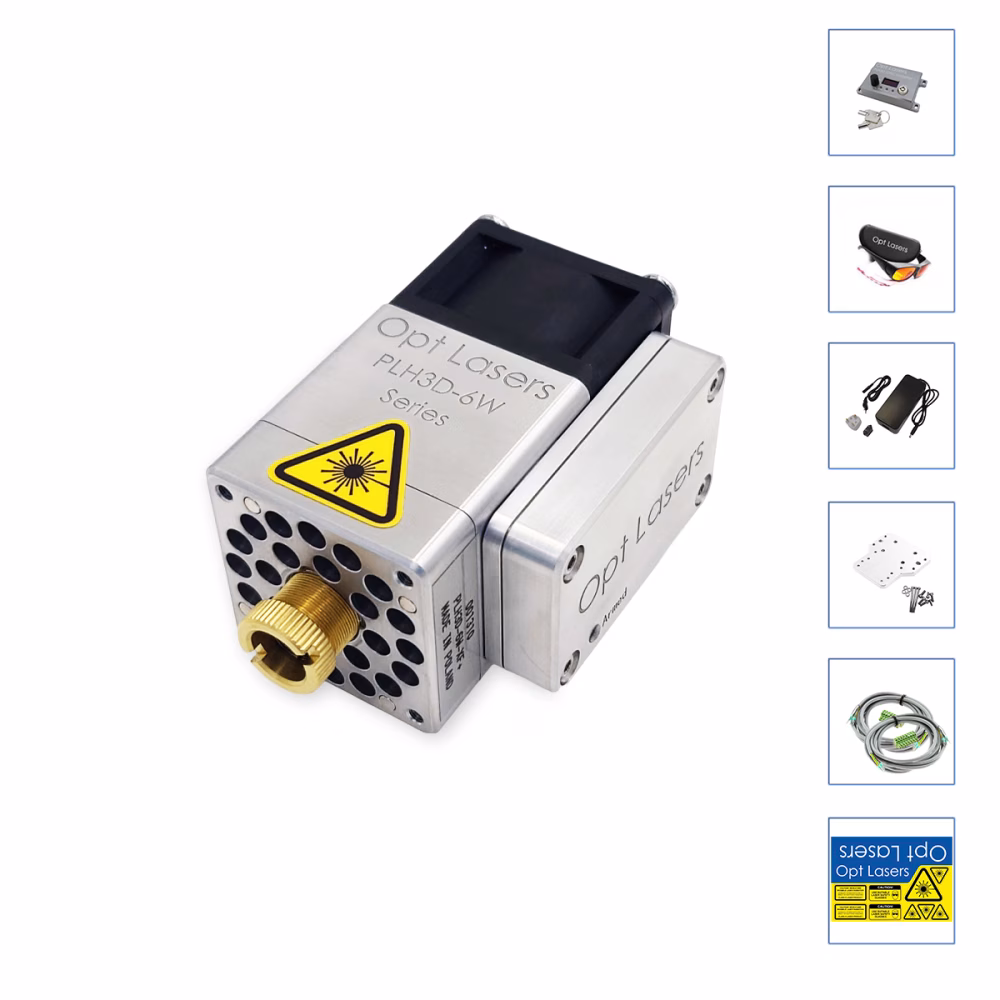

Includes Our Highest Quality Cutting and Engraving Laser Head - PLH3D-6W-XF+

XF+ is a best-selling 6 W laser from PLH3D Series. Featuring a robust high-quality design, it is a professional high-performance cutting and engraving laser head designed for hobbyists and industrial applications alike. This Shapeoko Laser is compatible with every single Shapeoko Series CNC machine, including Shapeoko Pro XL, Shapeoko Pro XXL, Shapeoko 4 Standard, Shapeoko 4 XL and Shapeoko 4 XXL. It is also compatible with all the previous generations of Shapeoko CNC machines such as Shapeoko, Shapeoko 2 Series and Shapeoko 3 Series (Shapeoko 3 Standard, Shapeoko 3 XL and Shapeoko 3 XXL). Even though the kit already includes a power supply unit, the XF+ laser for shapeoko is compatible with a wide range of common PSUs. The XF+ shapeoko laser has the strongest-for-its-size fan to provide the best cooling as well as smoke removal. What is more, the kit is shipped with a lens adjusting tool (lens spanner wrench), which facilitates changing the focus distance in case the shapeoko laser user wishes to do so.

You can also discover further interesting information about the Cutting and Engraving Shapeoko Laser 6W-Series.

Why the PLH3D-CNC Universal Adapter is Beneficial for Controlling Your Shapeoko Lasing Unit?

The fundamental functionality of the PLH3D-CNC Adapter is to “arm” and “disarm” shapeoko laser heads. Arming is understood as turning the laser head power supply on. Once armed, the cutting and engraving laser can then emit the laser processing beam. Conversely, disarming (turning off the laser power supply) brings the shapeoko laser unit to a safe state where emitting the laser beam is utterly impossible.

The adapter also provides the means to swiftly check the shapeoko laser by generating a short laser pulse at maximum power. At the same time, this feature also verifies if you wired your shapeoko laser head correctly.

Built-in safety features prevent unexpected behavior and misuse in case of an emergency. The key switch guards the cutting shapeoko laser against being armed by minors and other unauthorized people. Arming the laser is always done manually by the user (by pressing a button). In addition, special circuitry prevents laser arming in case of any malfunction of the internal electronics.

More importantly, your shapeoko laser module is automatically disarmed in case of emergencies such as:

  • Disconnecting or Breaking the Laser Head Wire
  • Loss of the Power Grid
  • Power Supply Unit Failure

Once disarmed, your shapeoko laser module stays in a safe state and rearming demands the user to press the mode button.

Key PLH3D-CNC Adapter Features:

  • One-Second Laser Pulse Test
  • Universal Compatibility With All PLH3D Series Laser Heads in Case You Would Like to Get an Upgrade to New Laser Head Releases, our Multi-Laser-Diodes Lasers or Specialized Laser Heads.
  • Soft Start
  • Built-in Smart Microcontroller
  • Indication LEDs - Power, Armed, Laser On
  • Two Programmable Enable Inputs
  • Two External Safety Terminals (For Instance: Safety Key, E-Stop)
  • Automatic Disarm After Power-Off
  • Keylock for Preventing Unauthorized People From Usage
  • Quality Machined Aluminum Enclosure
  • Simple One-Button System (For Arming, Pulse Testing and Adapter Program Setting)


  • Bear in mind that your Shapeoko CNC PLH3D-6W-XF+ laser is not a toy.
  • Laser radiation is dangerous even when scattered or reflected from any type of surface.
  • Always use proper protection laser filter on your CNC machine designed for the 430 - 480 nm wavelength band to avoid reflected radiation.
  • Never point laser head at animals or other people.
  • Do not touch the laser beam, it can cause burns or other injuries.
  • Do not glare at the beam or the beam spot while the material is being cut.
  • Laser radiation - Avoid eye or skin exposure to scattered or direct radiation.
  • Class 4 laser product when properly powered.

Example Applications

PLH3D-15W Plywood Cutting
Birtch Plywood
Thickness Feed Rate Step
3mm (0.118") 5mm/s (11.8 IPM) 0.6mm (0.023")
6mm (0.236") 5mm/s (11.8 IPM) 0.5mm (0.019")

Woodworking - Cutting and Engraving Wood

Blue laser engraving can produce a detailed pattern with round edges as well as darken the color of the wood. Laser engraving can be used to engrave a logo or a photo, which can’t be done with milling bits. With PLH3D-6W, you can laser engrave wood and wood-based materials, including cork, chipboard, particleboard, alder, cherry, maple, MDF, basswood, balsa, veneers, medium-density-fiberboard and high-density-fiberboard.

Steel Marking
Material Operation Feed Rate
Anodized Aluminum Marking 50mm/s (118 IPM)
Painted Steel Marking 50mm/s (118 IPM)

Engraving Anodized Aluminum and Painted Metals

Blue laser engraving can produce a detailed pattern with round edges as well as darken the color of the wood. Laser engraving can be used to engrave a logo or a photo, which can’t be done with milling bits. With PLH3D-6W, you can laser engrave wood and wood-based materials, including cork, chipboard, particleboard, alder, cherry, maple, MDF, basswood, balsa, veneers, medium-density-fiberboard and high-density-fiberboard.

Laser Cutting Fabric with PLH3D Lasers from Opt Lasers Grav
Material Thickness Feed Rate
Polyester 0.4mm (0.015") 40mm/s (94IPM)
Jeans 0.5mm (0.019") 8mm/s (19IPM)
Leather 1.5mm (0.059") 30 mm/s (70IPM)
Rubber 0.5mm (0.019") 15mm/s (35IPM)

Cutting Textiles and Thin Synthetic Materials

The high absorption of blue laser light for numerous materials enables fast cutting without damaging protection layers used in textile cutting. Blue laser cutting and engraving are suitable for diverse types of textiles including Cordura™, Alcantara, felt, 1080 denier nylon, jeans, short-staple fiber cotton, wool, tartan, fleece, white polyester, softshell, silk, lace and linen. High power density enables laser cutting textiles with carbon-reinforced yarn and nylon-reinforced yarn as well as white textiles. Many robust materials used in the production of tents, kites, and bags can be cut at 60 mm/s.

Other PLH3D-6W-XF+ Applications Gallery

Product Features


Powered by Blue Laser Diodes

Unlike infrared light, blue light is more easily absorbed by numerous industrial materials. This directly translates to several advantages including reduced power consumption and more compact heat sinking.

Integrated Control Electronics

In many laser heads that have the diode connected to the diode’s driver via a long cable and the coupling is done with connectors. Long wires are characterized by substantial inductive effects. This results in delays of the diode’s response in relation to the diode’s driver and as extension it also results in blurred lines. Connectors are more prone to disconnections than coupling done via direct soldering. Disconnecting during laser processing can damage the laser head.

Features of PLH3 Compact Design

Long Lifetime

Opt Lasers laser heads are industry-level grade CNC machine tools. Mechanical parts are made from machined aluminium. Our products are designed with cooling optimization in mind. Investing in the highest quality equipment ensures the best performance and price.Life time compared to price

Lightweight Design Mounts to Nearly any CNC Machine

Featuring a lightweight, Aluminum body that makes the laser weight less than 370 g. As a typical CNC spindle weighs approximately 1.8 kg, CNC machines can operate it effortlessly.

Simple Integration

Can be set on nearly any CNC machine since it accepts both analog and PWM CNC signals.

Instant-On Power

No warm-up time


LaserDock (Included in the Kits)Speeds up your work and keeps your laser clean

An effective solution for both large and small CNC machines and 3D printers, this magnetic docking station allows the PLH3D-XT Series laser for engraving to be quickly attached or removed. This facilitates quick access for CNC milling or 3D printing. By protecting the laser head from plastic or wood dust from your printer or CNC mill, it can extend the lifetime of the engraving laser and reduce maintenance. It also allows you to take advantage of the entire working area of your 3D printer or CNC machine.

High-Pressure Air Assist Nozzle

PLH3D-CNC Adapter (Included in the Kits) - Easy connection to any CNC machine

Many types of CNC machines and 3D printers with different control voltage standards and levels available on the market may be used to control the PLH3D head. The PLH3D-CNC Adapter converts all these signals to the standard compatible with the PLH3D head. The PLH3D-CNC Adapter contains widely used industry-standard screw connectors. A dedicated desktop low-noise power supply unit assures compatibility and reliability as well as eliminates problems caused by using third-party power supplies. The general status (power, armed, laser working) may be checked at a glance by watching three LEDs.

PLH3D-CNC Adapter

Laser Safety Glasses (Included in the Kits) - Ensure the highest quality of protection

These laser glasses can help reduce the probability of light entering the eye from the diffusely reflected laser light. It is important to note that while these laser glasses may be helpful at adding an additional layer of safety for diffusely scattered light, the user should not depend on them to protect against the beam entering the eye, either directly or indirectly. It is necessary to take additional precautions when working with lasers, receive proper training on how to do so and not depend on equipment as an alternative to safe practices.

High-Pressure Air Assist Nozzle

Other accessories (Included in the Kits) - To make your Opt Lasers Kit plug & play

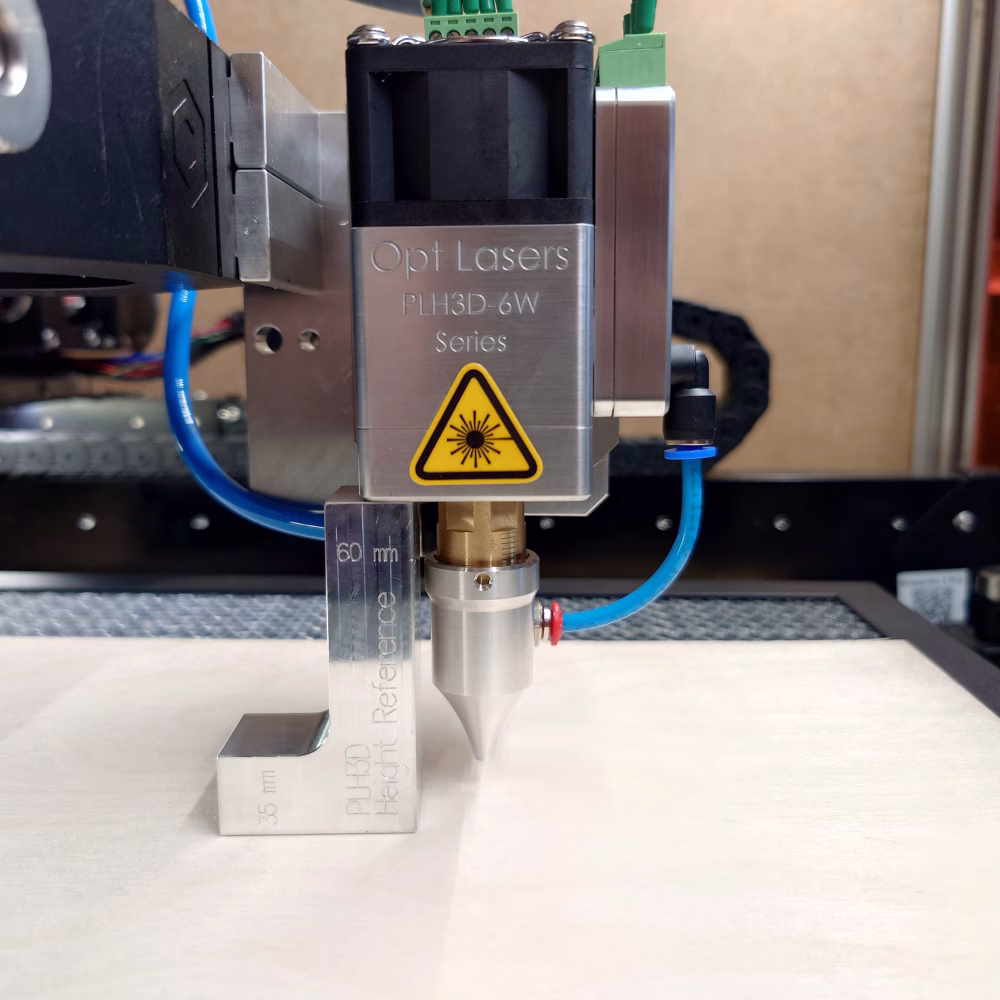

With these accessories, it is a plug & play kit. Height Reference - helps you set your working distance, power adapter with AC adapter to allow you to plug into all outlets (US, AU and Europe), wiring and screw set to connect everything together and mount to connect the machine.

High-Pressure Air Assist Nozzle

Blue Laser Safety Window (Compatible with all Blue Lasers) - Install as you need

These laser windows can help reduce the probability of light entering the user’s eye from a diffusely backscattered laser light. This product is rated at OD 6+ over the range of 190 to 540 nm, blocking deep ultraviolet to green including violet and blue light.

High-Pressure Air Assist Nozzle

High-Pressure Air Assist Nozzle (Compatible with XT-50 & XT-10 and XF+) - Speeds up laser cutting and engraving up to 6 times

Being compatible with the XT and XF+ Laser Head, the High-Pressure Air Nozzle is a priceless asset for laser cutting and engraving. Not only does it speed up cutting and engraving with laser by up to 6.5 times, but it also substantially improves the attained quality of the processed material. With the High-Pressure Air Nozzle your yield will have noticeably enhanced quality with uniform and well-defined features. Our High-Pressure Air Nozzle will also protect your optics from smoke and dust particles, extending the intervals between subsequent lens cleaning routines, and boost user safety.

High-Pressure Air Assist Nozzle

Product Specifications

Laser Diode Optical Power 6W
Dimensions of Laser Head (L x W x H) 40 x 55 x 78(105) mm
(1.6 x 1.7 x 3.1(5.9) in.)
Weight of Laser Head, Typ. 220g (7.76 oz.)
Flow Rate of Fan 43 m3/h (25 CFM)
Fan Noise 58 dBA
Mounting Hole Pattern 4 holes, 24 x 15 mm
(0.94 x 0.59 in.)
Mounting Hole Type M3 x 0.5 x 4.5 mm
Max. Ambient Temperature 45°C (113°F)
Modulations Inputs 2
Modulation Input 1 Analog/TTL/PWM,
0 – 5 V
Modulation Input 21 TTL/PWM 0 – 24 V
Recommended PWM Base Frequency 5 – 10 kHz
Max. Modulation Bandwidth 30 kHz
Input Impedance of 1 and 2 >1 k-Ω
Power Supply Unit Voltage 12 – 24 V
12 V PSU Min. Current 2.5 A
24 V PSU Min. Current 1.25 A
Max. Power Consumption 30 W
  1. "Laser Off" state is <2 V. "Laser On" state is 3 – 24 V.

Material Testing Gallery

Laser Cutting Fiber Reinforced Foil
Laser Cutting Leather
Laser Cutting Synthetic Materials

Laser Engraving PCB
Engraving Powder Painted Metal
Stainless Steel Marking with Laser

Laser Cutting Cardboard
Laser Cutting Foam
Laser Cutting Black PET Plastic

Laser Cutting Balsa Wood
Laser Engraving Anodized Aluminium
Laser Cutting Jeans Denim Fabric

Laser Cutting Balsa Wood
Laser Engraving Anodized Aluminium
Laser Cutting Jeans Denim Fabric

Laser Cutting Balsa Wood
Laser Engraving Anodized Aluminium
Laser Cutting Jeans Denim Fabric

Laser Cutting Balsa Wood
Laser Engraving Anodized Aluminium
Laser Cutting Jeans Denim Fabric
