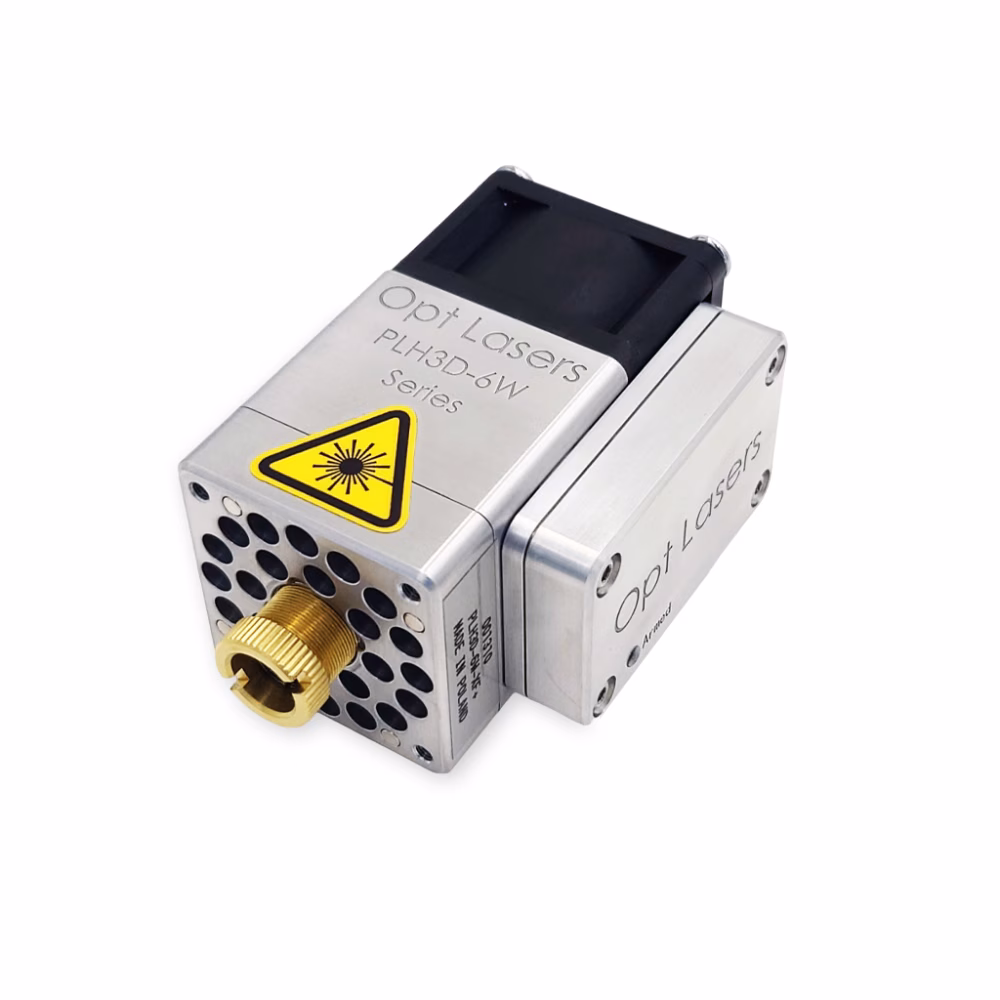

PLH3D-6W-XF+ Engraving Laser Head
Specs: 6W Optical Power, SD 85 DPI 300um spot, max wood cutting thickness 6 mm (¼”)
Best For: Standard Engraving, Soft Materials Cutting, MultiPass Material Cutting
Available on order upon request
Select Accessories
Build Your Own Kit | Full Upgrades in Description
|
LaserDock - Magnetic Docking Station $150.00 $49.95 |
|
|
High-Pressure Air Assist Nozzle Kit $119.00 $107.10 |
|
|
$100.00 | |
|
19V 2.5A Power Supply with US/UK/EU/AU Wall Plug $24.00 |
|
|
$70.00 $63.00 | |
|
$12.00 | |
|
PLH3D-CNC Adapter to Laser Head Cable 5.5m / 18 ft $4.00 |
|
|
PLH3D-CNC Adapter to Laser Head Cable (7 m/22 ft) $4.00 |
|
|
$5.00 |
CNC Machine Control Software
|
Lightburn CNC Software License $150.00 |
Downloads
Manual of the PLH3D-6W Engraving Laser
Product description
PLH3D-6W-XF+
More than 10 years of experience
Over 5,000 units produced and hundreds of positive reviews
Explore the PLH3D-6W-XF+ Laser Head, a trusted choice in the market for over 10 years. With more than 5,000 units crafted and deployed worldwide, this laser head has proven its reliability and efficiency in various cutting and engraving applications. Users across the globe have shared hundreds of positive reviews, celebrating its precision and ease of use.
Ideal for both hobbyists and professionals, the PLH3D-6W-XF+ enhances any CNC machine or 3D printer, turning them into powerful tools capable of producing intricate designs on a plethora of materials. Whether you're looking to upgrade your current setup or start a new project, the PLH3D-6W-XF+ is your perfect starter kit for unmatched performance.
Benefits Offered by Opt Lasers for the First Time on This Market
30-Day Satisfaction Guarantee for Returns
Lifetime Technical Support
#1 in Customer Support
Optional Collision or Laser Head Drop Insurance
Product Originating from the Laser Head Concept Creator
Made in Poland, EU
PLH3D-XF+ in Complete Plug & Play Laser Upgrade Kits for All CNC Machines
Click to view the dedicated machine category with kits:
Features & Benefits of the PLH3D-6W-XF+ Cutting and Engraving Laser Head In Details
Cutting and Engraving - PLH3D-6W-XF+ blue laser allows to cut and engrave various materials such as wood, cardboard, rubber, paper, textiles, leather, plastic, balsa, plywood, and many others, as well as mark stainless steel, titanium and low heat conductance subtypes of steel.
Improved Safety - The cutting and engraving laser head is equipped with an “Armed” indication LED, signaling its connection to the power supply and providing alerts for overheating. Additionally, ambient temperature warnings ensure safe operation.
Factory Set Lens - each laser head is shipped with a High-Resolution Triplet lens adjusted to focus at 60.0 mm. This distance is the best-optimized focus distance to start with.
Easy Lens Adjustment: The working (focus) distance can be quickly set or changed with the included lens adjuster, compatible with all M9x0.5 lenses. For certain applications, adjusting the beam for symmetrical engraving is recommended.
Built-in Driver: A short connection between the laser diode and a driver ensures better protection for a diode, possibility of high-frequency current modulation as well as eliminates inductance effects during the switch-on.
No Additional Cooling Required: This lightweight laser requires no additional cooling. The XF+ laser's body acts as a heatsink, allowing it to work constantly for 24 hours, every day.
Accessories
PLH3D-CNC Adapter Basic
(Included in Plug&Play Kits)
- Easy connection to any CNC machine.
- Converts machine signals to the standard compatible with the laser head.
- Ensures an additional layer of safety for users and laser heads.
Laser Safety Glasses
(Included in Plug&Play Kits)
- Provide a significant layer of protection against blue laser exposure.
- Effectively reduce the potential harm from diffusely reflected laser radiation.
- Offer 50% Visible Light Transmission for clear visibility.
CNC Mount, Power Supply, Connection Wires
(Included in Plug&Play Kits)
- Sturdy aluminum mount for secure attachment of the laser head or docking station.
- High-quality and low-noise power supply.
- All necessary wiring for seamless connectivity.
LaserDock Magnetic Docking Station
(Optional accessory, add at the top of the page)
- Quickly connect and disconnect the laser to and from your CNC machine.
- Protects the laser unit from oils, metal particles, and dust.
- Includes an Aluminium cover that shields the Dock when not in use
High-Pressure Air Assist Nozzle
(Optional accessory, add at the top of the page)
- Increases laser processing speeds up to 6.5 times.
- Decreases heat related damage to the material.
- Protects laser optics from smoke and debris.
Laser Safety Window
(Optional accessory, add at the top of the page)
- Ideal for CNC machine enclosures.
- Blocks deep ultraviolet, blue, and green light.
- Enhances the safety of the surroundings.
Product Technical Specifications
PLH3D-6W-XF+ | |
---|---|
Maximum Optical Power | 6 W |
Dimensions of Laser Head (L x W x H) | 76 x 89 x 194 mm (3 x 3,5 x 7,64 in.) |
Weight of Laser Head, Typ. | 1050g (2.31 lb.) With LaserDock: 1230g (2.71 lb.) |
Flow Rate of Fan | 92 m3/h (53 CFM) |
Fan Noise | 58 dBA |
Mounting Hole Pattern | 5x 4 holes, 24 x 15 mm (0.94 x 0.59 in.) |
Mounting Hole Type | M3 x 0.5 x 3 mm |
Max. Ambient Temperature | 40°C (104°F) |
Modulation Input | PWM/TTL, 0 – 24 V |
Recommended PWM Base Frequency | 1 – 5 kHz |
Max. Modulation Bandwidth | 30 kHz |
Modulation Input Impedance | >1 kΩ |
Power Supply Unit Voltage | 24 V |
24 V PSU Min. Current | 8 A |
Maximum Power Consumption | 170 W |
