1 x PLH3D-XT8 45W Cutting and Engraving Laser Head
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting
Our choice

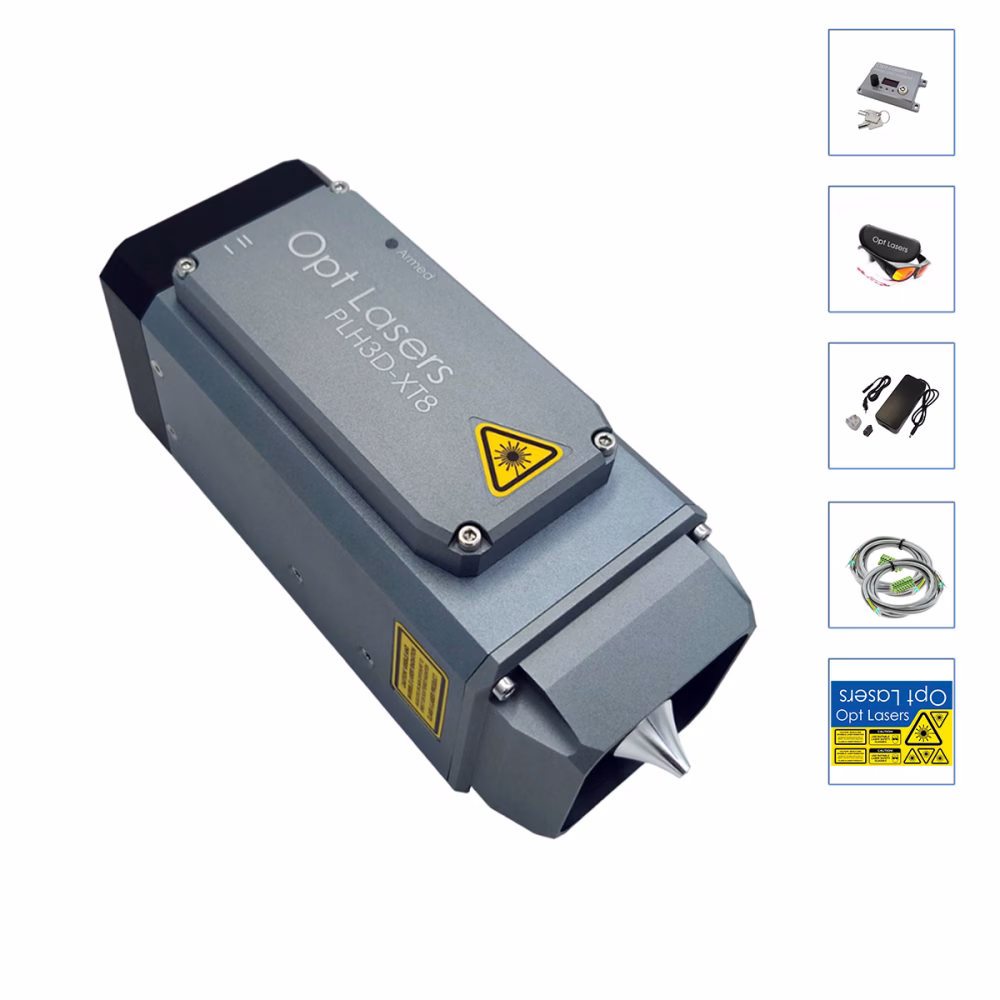

XT8 45W Plug&Play Laser Kit for All CNC Machines
Universal PLH3D-XT8 Laser Upgrade Kit
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting
Includes: Laser Head, Air Nozzle, CNC Adapter Pro, Laser Safety Glasses, Beam Cover, Mount and More.
- Read reviews (34)
SKU:
004381
GTIN:
5902693114512
Manufacturer:
Opt Lasers
Select Accessories
LaserDock
|
|
|
LaserDock PRO - Laser to CNC Magnetic Docking Station $199.00 $169.15 |
Additional Safety Accessories
|
|
|
$70.00 $63.00 |
|
|
|
$187.00 $168.30 |
Insurance Options
|
|
|
2-Year Insurance for Collision or Laser Head Drop $249.00 $224.10 |
CNC Machine Control Software
Spare Accessories
Items included in the kit:
-
-
1 x PLH3D-CNC Adapter Pro
✔ Provides communication between CNC machines and laser heads.
✔ Ensures an additional layer of safety for users and laser heads.
-
1 x 24V 8A Power Supply with US/UK adapters
✔ For powering the PLH3D-Series laser heads via the PLH3D-CNC Adapter Pro.
✔ Delivers a reliable 24V 8A output.
✔ Shipped with a plug compatible with the standards used in the destination country.
-
1 x Laser Safety Glasses
✔ Laser Safety Glasses rated at OD 7+ over the range of 190 to 540 nm.
✔ Reduce the risk of light entering the user’s eyes from backscattered laser light.
-
1 x Cable for PLH3D-XT8 Laser Head (7m / 22 ft)
✔ Cable for connecting PLH3D-Series lasers heads or LaserDock Pro to PLH3D-CNC Adapter Pro.
✔ Transfers power and control signals to the laser head.
-
1 x OptiShield - PLH3D Laser Engraver Beam Cover
✔ Reduces light reflection from the processed material and ensures optimal cooling of the laser head.
✔ Mountable on the High Pressure Air Assist Nozzle.
-
1 x PLH3D Height Reference Tool
✔ Compact tool for easy and quick focal distance adjustments for PLH3D-Series laser engravers.
-
1 x Set of CNC Laser Stickers
✔ Set of CNC laser stickers.
✔ Included in every laser kit from Opt Lasers.
Downloads
Product description
Benefits Offered by Opt Lasers for the First Time on This Market
5-year Opt Lasers Warranty
30-Day Satisfaction Guarantee for Returns
Lifetime Technical Support
#1 in Customer Support
30-Day Satisfaction Guarantee for Returns
Lifetime Technical Support
#1 in Customer Support
Unmatched Durability and Reliability
Optional Collision or Laser Head Drop Insurance
Product Originating from the Laser Head Concept Creator
Made in Poland, EU
Optional Collision or Laser Head Drop Insurance
Product Originating from the Laser Head Concept Creator
Made in Poland, EU
PLH3D-XT8 - World's No. 1 Patented Laser Head Complete Plug&Play Kit for All CNC Machines
Looking to upgrade your CNC machine with laser capabilities? Our Hyper-Performance XT8 CNC Cutting and Engraving Laser Heads are the ultimate solution. Crafted by the industry's leading manufacturer and concept creator of laser heads, our impressive XT8 laser heads deliver unparalleled performance.
The PLH3D-XT8 laser head incorporates Opt Lasers' patented multi-laser diode technology, driving its cutting-edge capabilities. This innovative approach ensures unparalleled performance and precision, setting a new standard in laser processing.
This comprehensive kit includes all essential components such as Laser Safety Glasses, OptiShield Beam Cover, PLH3D-CNC Adapter Pro, and a universal aluminum mount for easy integration with CNC machines. Furthermore, the kit is equipped with a universal signal cable, signal wires and a PSU, ensuring universal compatibility with any CNC controller.
Trust in the best – this kit is your all-in-one Plug&Play package, delivering top-notch performance and hassle-free setup for your machine, from us, Opt Lasers.
Remember to select the right Laser to Machine Mount and Signal Wire for your CNC machine at the top of the page!
Click to see the XT8 in action!
Pick Your CNC Model or Brand to See the Compatible Plug & Play Laser Kit
Features & Benefits of the PLH3D-XT8 Laser Head
Unmatched Focus Depth: With its remarkable focus depth and extended beam waist, the XT8 eliminates the need for constant adjustments and allows single-pass cutting, speeding up your work.
Precision in Action: The PLH3D-XT8's laser spot size below 200 um allows you to achieve precise details for artistic work and effortlessly cut through materials like 15 mm wood.
Grayscale Engraving and Full-Power Cutting: Switch between two modes: 50% power for detailed engraving or high-speed cutting with 100% power, swiftly adapting to various materials and applications.
Integrated Air-Assist Nozzle: Enhance cutting efficiency with our integrated nozzle. Enjoy up to six times faster cutting speeds and reduced heat-related damage to the processed material.
Copper Heatpipe Heatsink: Our advanced cooling technology ensures optimal cooling performance and great longevity by efficiently conveying heat to an additional heatsink.
Operational Safety: Stay informed with our signaling LED, indicating the laser's armed status and providing overheating alerts for added safety and proper temperature management.
Superfast Built-In Driver: Experience unmatched performance with our integrated driver, ensuring precise engraving and reliable results. The close proximity of the laser diodes to the driver enables high-frequency current modulation.
Full-Metal Body: The laser's housing is fully constructed from durable metal, ensuring robust protection and enhanced longevity for the device.
Showcase of Creations from Customers Made with Opt Lasers Cutting and Engraving Laser
Most Popular Accessories for the PLH3D-XT8
PLH3D-CNC Adapter Pro
Included in the Kit
- Safety key to prevent unauthorized use.
- Display showing status, input state, PWM signal fill level, and set program.
- Easy program change and adapter programming capability.
- System restart in case of power failure.
- Detection of laser head connection.
- Additional settings for advanced users.
- Test mode for checking connections and testing the laser head.
- Capability for remote arming.
- Additional opto-isolated inputs.
Magnetic LaserDock PRO
Optional - add at top of the page
- Simultaneous connection for electricity and compressed air in one docking station.
- Prevents dangerous vertical collisions.
- Fast attachment or removal of the laser head in seconds.
- Suitable for mounting heavy laser heads.
- Gold-plated, spring-loaded pins ensure protected and reliable connections.
- Position-locking capability for LaserDock.
- Hard anodized aluminum construction.
OptiShield - PLH3D Laser Engraver Safety Beam Cover
Included in the Kit
- Reduces emitted laser light reflection from the processed material.
- Ensures optimal cooling of the laser head.
- High Pressure Air Assist Nozzle.
Laser Safety Glasses
Included in the Kit
- Enhance your safety with our CE-rated 450 nm Laser Safety Glasses.
- Offer 50% Visible Light Transmission for clear visibility.
- High Optical Density (OD) rating of 7+ across the 190 nm to 540 nm range.
- Effectively reduce the potential harm from diffusely reflected laser radiation.
- Provide a significant layer of protection against blue laser exposure.
Mount and Height Reference Tool
Included in the Kit
- Height reference tool for quick and easy adjustment of the laser head's working distance.
- Sturdy aluminum mount for secure attachment of the laser head or docking station.
- All basic screws included.
- Avoid hidden costs.
Power Supply and Wiring
Included in the Kit
- All necessary wiring for seamless connectivity.
- Compatible with international outlets (US, AU, and Europe).
- High-quality and low-noise power supply.
- Designed to simplify setup and enhance user experience with the Opt Lasers Kit.
- Avoid hidden costs.
Laser Safety Window
Optional - add at top of the page
- Ideal for CNC machine enclosures.
- Blocks deep ultraviolet, blue, and green light.
- Enhances the safety of the surroundings.
- Rated at OD 6+ over the range of 190 to 540 nm.
- Available in various sizes.

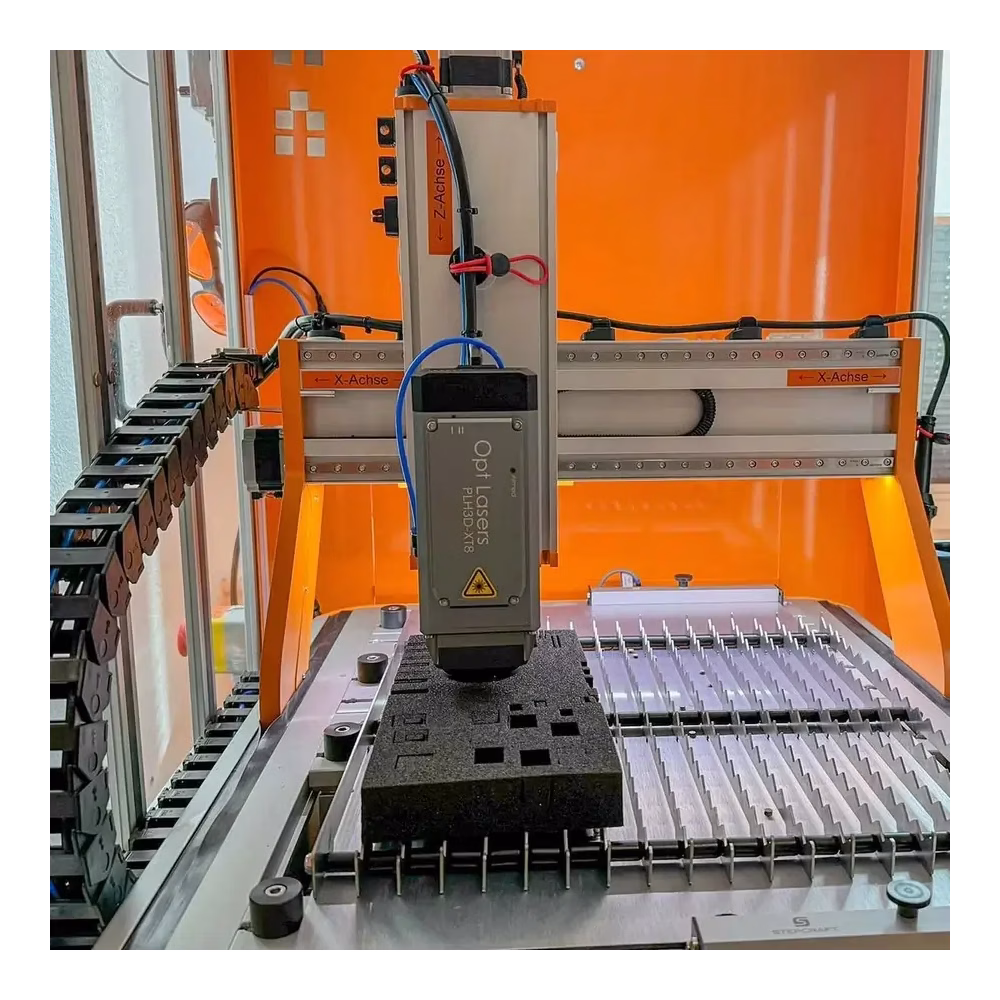

Showcase of CNC Machines Featuring Opt Lasers Cutting and Engraving Laser
Built-In Driver with Unmatched Performance - The Heart of The Laser Head
Opt Lasers leads in innovation by being the first to integrate a superfast laser diode driver directly into the cutting and engraving laser head. The built-in driver, the heart of the laser head, ensures enhanced protection for the laser diode. As a manufacturer of laser diode drivers, Opt Lasers has leveraged years of experience to create a highly efficient driver with low power consumption and minimal heat production. This makes using the cutting and engraving lasers at high speeds feasible, even for small details or tight radius turns, thanks to the driver's ability to process all necessary signals swiftly. Moreover, with a maximum driver current of 6A, operating it at 3-4A ensures longevity and reliability, providing an offset for extended driver life.
- Maximum output current capacity: 6 A
- Typical output current: 3-4 A
- Input voltage 24 V
- Integrated microcontroller for temp. measurement and soft start
- Thermal protection system: 45 °C
- Soft start for diode protection
- Electrostatic discharge (ESD) protection
- Reverse voltage protection
- Overcurrent protection
- Compact size and 90% efficiency
- CW Mode and Input Control Mode
- PWM/TTL input
- Status output (5V = OK) input
- Modulation bandwidth 0-30 kHz
Product Technical Specifications
| PLH3D-XT8 | |
|---|---|
| Maximum Optical Power | 45 W |
| Dimensions of Laser Head (L x W x H) | 76 x 89 x 194 mm (3 x 3,5 x 7,64 in.) |
| Weight of Laser Head, Typ. | 1050g (2.31 lb.) With LaserDock: 1230g (2.71 lb.) |
| Flow Rate of Fan | 92 m3/h (53 CFM) |
| Fan Noise | 58 dBA |
| Mounting Hole Pattern | 5x 4 holes, 24 x 15 mm (0.94 x 0.59 in.) |
| Mounting Hole Type | M3 x 0.5 x 3 mm |
| Max. Ambient Temperature | 40°C (104°F) |
| Modulation Input | PWM/TTL, 0 – 24 V |
| Recommended PWM Base Frequency | 1 – 5 kHz |
| Max. Modulation Bandwidth | 30 kHz |
| Modulation Input Impedance | >1 kΩ |
| Power Supply Unit Voltage | 24 V |
| 24 V PSU Min. Current | 8 A |
| Maximum Power Consumption | 170 W |
Example Cutting and Engraving Speeds with PLH3D-XT8
| Material | Operation Type | Thickness | Speed | Laser Power | Passes |
|---|---|---|---|---|---|
| Wood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Engraving | N/A | 70 mm/s (165 inch/min) | 20% | 1 | |
| Plywood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 22.5 mm/s (53.1 inch/min) | 100% | 1 | |
| Cutting | 4 mm (0.157") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Cutting | 6 mm (0.236") | 6 mm/s (14 inch/min) | 100% | 1 | |
| Cutting | 10 mm (0.394") | 3 mm/s (7 inch/min) | 100% | 1 | |
| High-Density Fiberboard (HDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Medium-Density Fiberboard (MDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 7.5 mm (0.295") | 4 mm/s (9.4 inch/min) | 100% | 1 | |
| Balsa | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 12 mm (0.472") | 40 mm/s (94 inch/min) | 100% | 2 | |
| Pinewood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 15 mm (0.591") | 3 mm/s (7 inch/min) | 100% | 1 | |
| Veg-Tan Top-Grain Pigskin Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 | |
| Hard Veg-Tan Full-Grain Cowhide Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 4 mm (0.157") | 18 mm/s (42.5 inch/min) | 100% | 1 | |
| PU (Polyurethane) Faux Leather | Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 |
| White Marble | (Deep) Engraving | N/A | 52 mm/s (120 inch/min) | 100% | 1 |
| Slate | Engraving | N/A | 140 mm/s (330 inch/min) | 100% | 1 |
| Black Acrylic | Cutting | 2 mm (0.079") | 7 mm/s (17 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 6 mm/s (14 inch/min) | 100% | 3 | |
| Cutting | 10 mm (0.394") | 6 mm/s (14 inch/min) | 100% | 4 | |
| Orange Transparent Acrylic | Engraving | N/A | 220 mm/s (520 inch/min) | 5% | 1 |
| Red Acrylic | Cutting | 2 mm (0.079") | 4.2 mm/s (9.9 inch/min) | 100% | 1 |
| Green Acrylic | Cutting | 2 mm (0.079") | 2.8 mm/s (6.6 inch/min) | 100% | 1 |
| Cotton | Engraving | N/A | 180 mm/s (425 inch/min) | 15% | 1 |
| Jeans | Cutting | 0.5 mm (0.0197") | 255 mm/s (602 inch/min) | 100% | 1 |
| High-Density Reinforced Nylon | Cutting | 3.6 mm (0.142") | 6 mm/s (14.2 inch/min) | 100% | 1 |
| White Polyester | Cutting | 0.2 mm (0.00787") | 60 mm/s (142 inch/min) | 100% | 1 |
| White High-Density Polyester | Cutting | 0.4 mm (0.0157") | 25 mm/s (59 inch/min) | 100% | 1 |
| Cordura | Cutting | 0.35 mm (0.0138") | 150 mm/s (354 inch/min) | 100% | 1 |
| Cutting | 0.5 mm (0.0197") | 95 mm/s (224 inch/min) | 100% | 1 | |
| Felt | Cutting | 4 mm (0.1575") | 70 mm/s (165 inch/min) | 100% | 1 |
| Polyfoam | Cutting | 40 mm (1.575") | 5 mm/s (12 inch/min) | 100% | 1 |
| Cutting | 40 mm (1.575") | 15 mm/s (35 inch/min) | 100% | 3 | |
| EVA Foam | Cutting | 3 mm (0.118") | 140 mm/s (331 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 85 mm/s (201 inch/min) | 100% | 1 | |
| Polyurethane (PU) Foam | Cutting | 10 mm (0.394") | 88.5 mm/s (209 inch/min) | 100% | 1 |
| Carbon Fiber | Cutting | 0.5 mm (0.0197") | 15 mm/s (35.4 inch/min) | 100% | 1 |
| Glass Fiber | Cutting | 0.7 mm (0.0276") | 5 mm/s (11.8 inch/min) | 100% | 1 |
| Stainless Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 | |
| Tool Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 |
Reviews
powerhouse!
The cooling system works wonders, even during long engraving sessions. My previous laser couldn’t handle the workload, but this one is a powerhouse!
fast delivery
What I appreciate most is the versatility. Whether it’s cutting intricate designs on wood or engraving glass, this laser does it all without a hitch.
better than expected
The results are better than expected, especially for such a compact laser head.
easy for beginner
I’m not a professional, but this laser makes me feel like one. It’s so intuitive and delivers excellent results, even for a beginner like me
Best of the best!
I love it!
engraving a creative way
This laser made engraving a creative outlet for me. I’ve started selling custom-designed coasters, and the quality has wowed my buyers.
quality quality quality
What sets this laser apart for me is the build quality. It feels robust and designed for long-term use, which is rare these days.
Amazed
I was amazed by how easily this laser integrates with my CNC machine. It transformed the way I work on custom furniture projects. Truly a professional tool!
laser working with acrylic
At first, I wasn’t sure if the power would be enough for cutting thicker materials, but it handles 10mm acrylic like it’s butter. Couldn’t ask for more!
incredible
The detail this laser achieves is incredible. I’ve started engraving family portraits onto wood, and the feedback has been amazing from customers.
Definitely worth the investment
I was impressed by how fast it cuts through plywood without compromising on the edges’ smoothness.
Stunning
It’s the perfect tool for both hobbyists and professionals. I’ve started collaborating with other creators to make stunning, customized designs
My clients love the intricate detailing I can achieve now.
This laser has helped me expand my woodworking business significantly.
i love it
I love how it keeps performing consistently, even after months of heavy use. It’s not just another laser; it’s a solid investment in my workshop.
worth every $$$
Having used many lasers before, this one stands out for its reliability. It doesn’t overheat and maintains precision on every project.
clear and easy
The instructions were clear, and I had it set up in no time. Since then, I’ve been working on signs for local businesses, and the precision is unmatched.
Ukie
OPT lasers are the best of the best. Easy to install and do a magnificent job at etching and rastering on various substrates Highly recommend this product to all CNC owners. You won't be sorry.
Perfect match
The XT8 has exceeded my expectations. I recently purchased the XT-50 for its advanced features and enhanced performance.
I love my XT8.
I also bought the XT-50 for even more power and precision in my projects.
Fast and furious!
Greatt
Fast shipping
I got it faster than expected. Support helped with all my questions 5/5
Pro
The accuracy is mind-blowing. Fast delivery
Precision Meets Speed
Didn't know what I was missing until I tried this upgrade. It's like my projects are on HD now
WHAT A BEAST!
I got it to cut 3/4" pine and then engrave it with high detail, how cool is that?!?!
5/5
Worth every penny! Sped up my work so much, i'll still use my XT-50 for fine work, but for cutting this is just soo fast
Revolution
Brought this new gear into my setup, and wow, talk about an upgrade! It's like going from a flip phone to a smartphone in terms of precision. Delivery was speedy too – huge plus!
Nuevo favorito
Productos como estos son la razón por la que soy fiel a la marca Opt. El haz es tan estrecho que puedes cortar madera gruesa con un solo pase!
5/5
nothing to add more
Good
I am very happy with the laser and Opt Lasers service, only one star less because the courier couldn't get to me. I got the package in 5 days to NJ
A Game Changer for Beginners
As someone new to laser engraving, this blue laser head from Opt Lasers was a revelation. It's incredibly user-friendly and was easy to integrate into my existing setup. The difference in my projects is night and day—sharp, precise cuts every time. Truly a must-have for beginners looking to elevate their work.
Great laser
Gotta say that was a lot of money to spend, but what you get is a sturdy build with high optical power and great results. I even dropped it once OOPS! and it survived no problem~!!
upgrade time!
Just upgraded my CNC with this unbelievable laser head. The results? Out. Of. This. World.
Professional Grade
This laser was exactly what I needed in my workshop. I do a ton of foam and plywood cutting, and speed is of the essence. XT8 solved all my problems, thanks opt Lasers!
Fast
shoutout for the lightning-fast shipping!
