HP Fiber Optic Patchcord 400/440, 0.22 NA

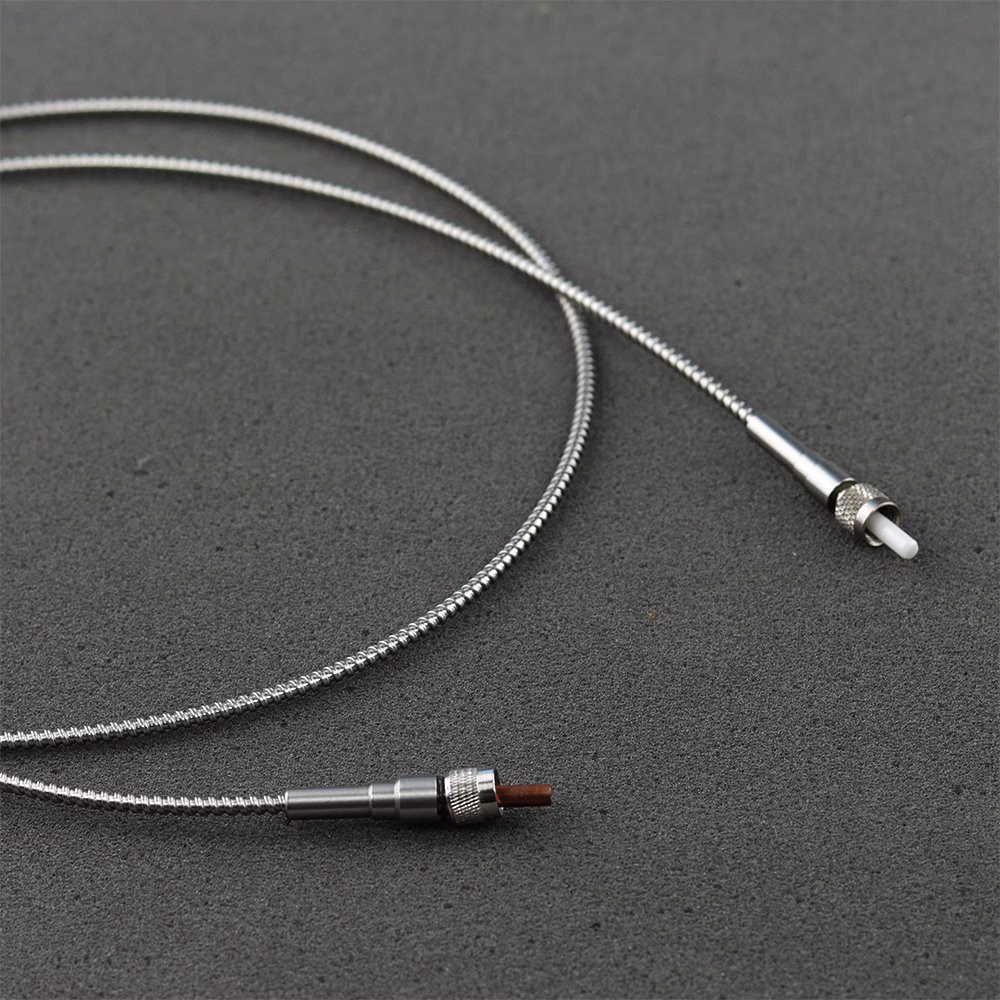

This high-power fiber optic cable features a 400 μm / 0.22 NA fiber, SMA connectors, and a visible anti-reflection (AR) coating. With a length of 2 m, it can handle power levels above 50 W without requiring heat sinking due to the air-gap SMA connector.
Product description
High-power multimode patchcord with a 400/440 µm silica fiber and 0.22 NA for efficient coupling and stable delivery of visible–near-IR laser power. Engineered for low insertion loss and robust handling in laboratory and industrial environments.
Key Features
-
400/440 µm core/cladding, NA 0.22 — wide acceptance angle and forgiving alignment for high-power diode/solid-state sources.
-

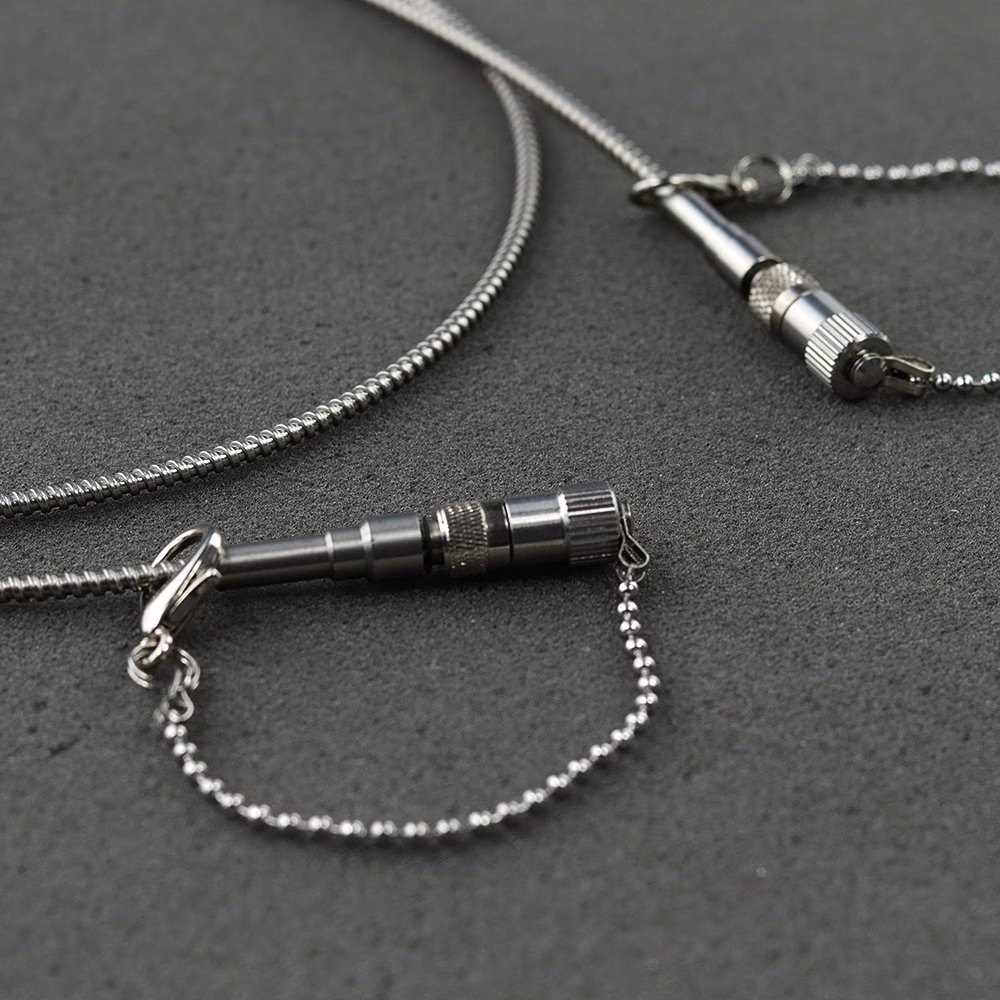

High-power connector options (e.g., epoxyless air-gap input; SMA905/FC output) help mitigate thermal load and back-reflections.
-
Optional VIS/NIR AR coatings reduce Fresnel losses and increase delivered power.
-
Rugged (optionally armored) jacket for improved bend, crush, and tensile resistance.
Applications
High-power beam delivery, pilot materials processing, illumination, and test setups requiring a durable, wide-acceptance multimode fiber path.
Specifications (summary)
-
Core/cladding: 400/440 µm
-
Numerical aperture: 0.22
-
Fiber type: Multimode silica
-
Connectors: Per configuration (HP air-gap/SMA905/FC)
-
Coatings: VIS or NIR AR (optional)
-
Length: As specified (commonly 2 m)
Handling Notes
Respect the minimum bend radius and avoid shocks near ferrules. Keep end faces clean; begin alignment at reduced power and increase only after achieving good coupling efficiency, especially with air-gap inputs.
