20W 450nm Free Space Laser Diode Module

Laser module designed with wavelength 450nm and power 20 W. Typical beam size is 7 x 7 mm.

In Stock

$2,500.00 tax excl.

Our payments
SKU: 004323
GTIN: 5902693113393
Manufacturer:

Product description

Opt Lasers 20W 450nm Free Space Laser Diode Module is a high power source of 450 nm laser light. The module can be easily mounted on the metric breadboard or heatsink/cooling platform. You can precisely control laser power and pulse duration by controlling it with an analog, or a PWM signal.

With this module, a user has full flexibility with the cooling method selection. It will help you optimize cooling method cost and offers the possibility to vastly increase the power stability of the module. Our team is open to help you with choosing an optimal cooling method for your application.

Client satisfaction is most the important value for us. Therefore we offer full customization of the module to satisfy both our industrial and laboratory clients. The team of our best specialists is waiting to help you with your application, so if you have any questions feel free to contact us.

Read more about free space laser diode modules.




Product Features

  • High power
  • Low divergence
  • High Optical Stability
  • Long Lifetime
  • High speed modulation

Applications

  • Illumination
  • Fluorescence
  • Automotive
  • Spectroscopy
  • Laser pumping



Specifications

Typ. Center Wavelength [nm, ±5] 450
Output power [W] 20
Typ. Beam Size [mm, @ 1/e2]1 7 x 7
Typ. Full Angle Beam Divergence [mRad, @ 1/e]1 0.2 x 6
Polarization State TE
Min. Polarization Extinction Ratio 1:100
Peak-to-peak Power Stability Over 8h, %2 0.7 - 3
RMS Power Stability Over 8h, %2 0.1 - 0.5
Lifetime [h] 10 000
Modulation Input [V, Analog] 0-5
-3 dB Bandwidth Modulation [kHz] 850
Softstart Time [ms] 2000
Rise Time [ns]3 250
Fall Time [ns]3 150
Signal To Rise Start Delay [ns]3 400
Laser Diode ESD Protection YES
Cooling Method -
Case Temperature [°C] 10 - 45
Overheat protection Yes
Max. dissipated Power [W, bottom surface] 70
Max power consumption [V x A] 24 x 4

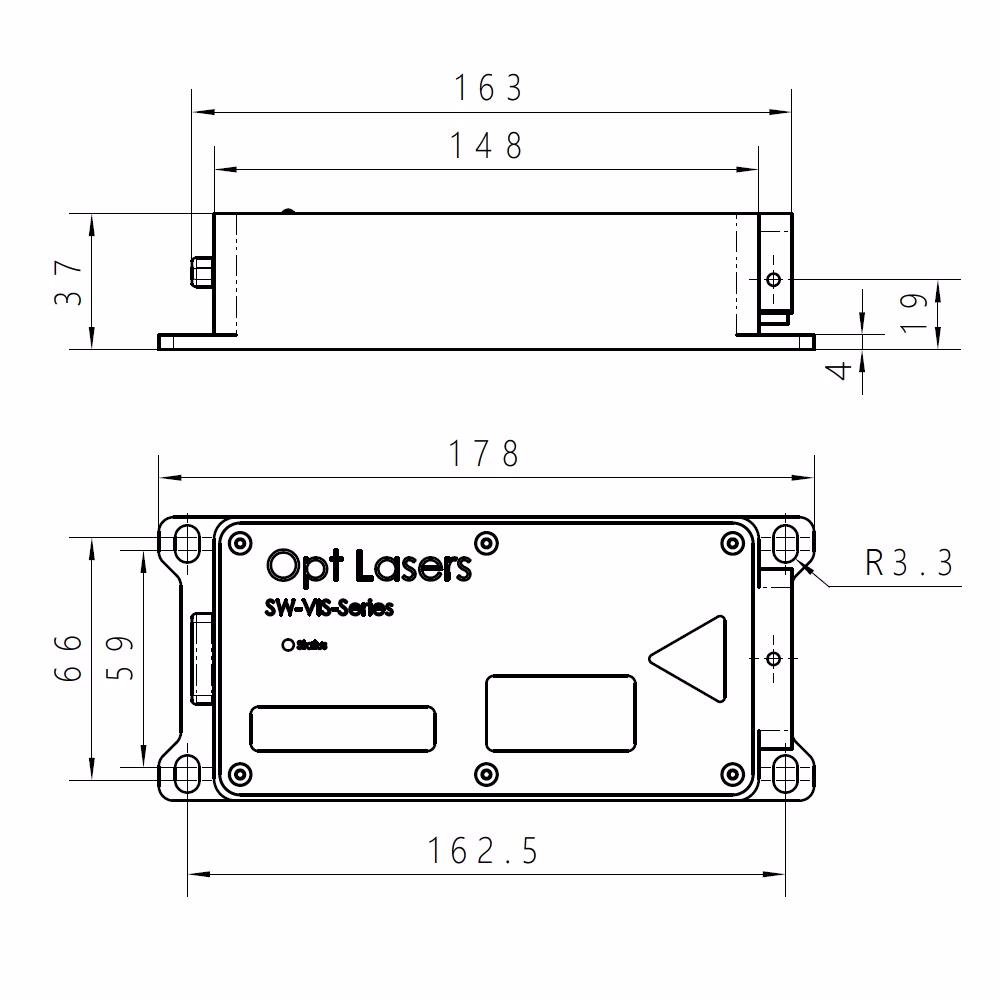

Module dimensions (L x W x H) [mm] 178 x 77 x 37

1 Vertical x Horizontal.

2 Depends on the applied cooling method

3 Measured performed with 100kHz frequency.
