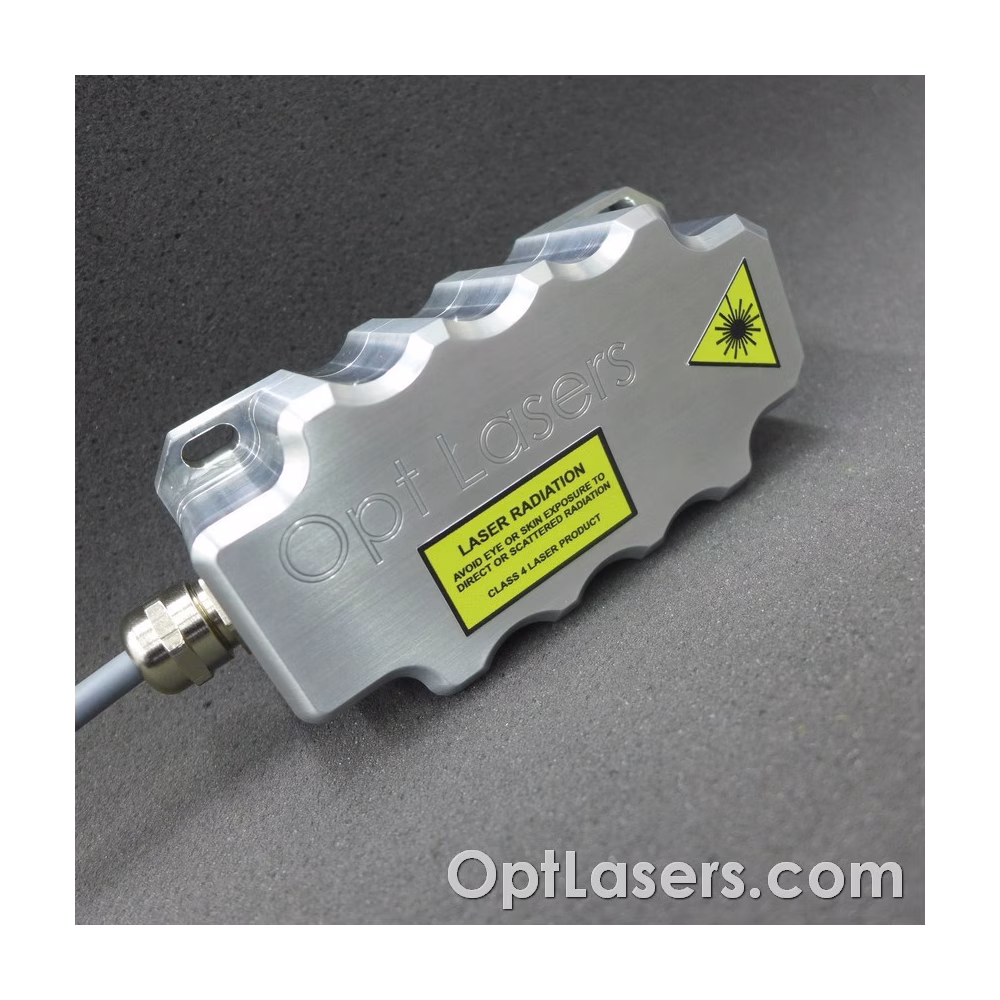

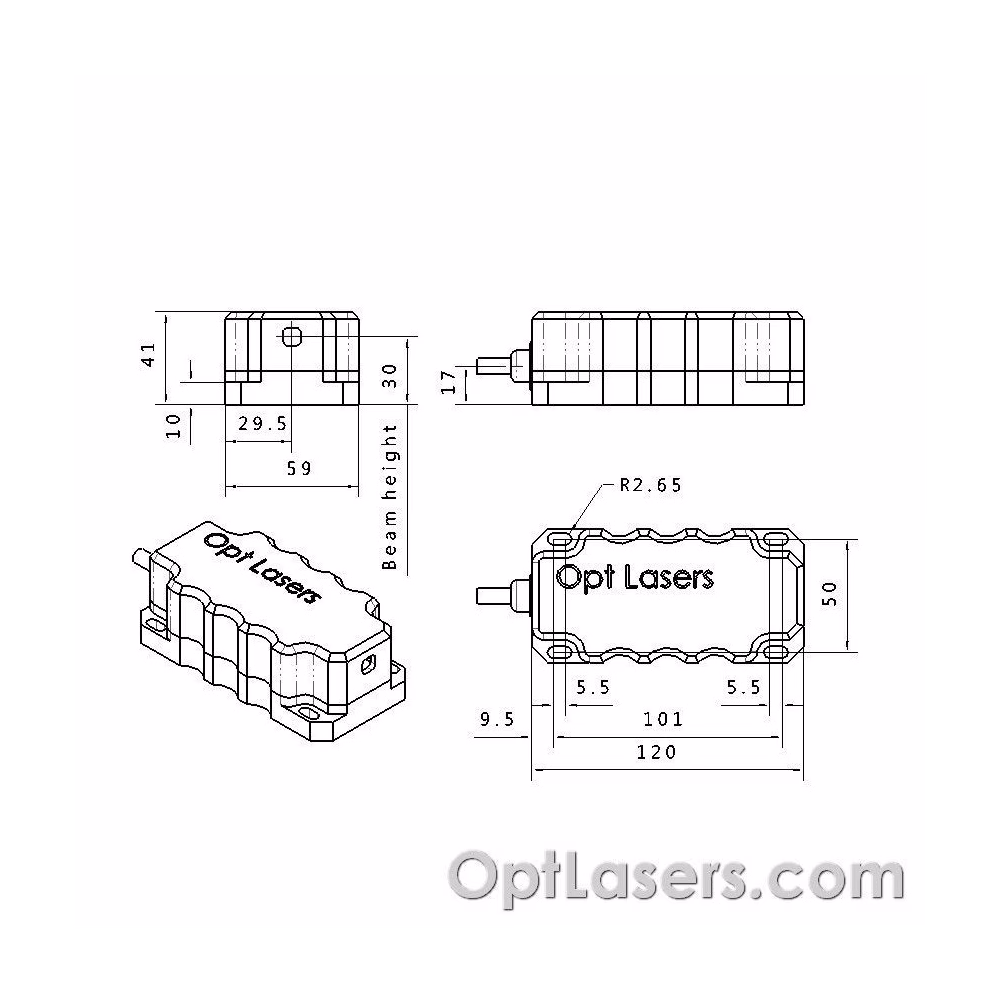

G520-80SM laser module
80 mW green laser module with a wavelength of 520 nm.
SM Series uses multimode laser diodes of leading manufacturers which allows achieving high power and its stability, as well as the reliability of the modules.
Delivery time: days
Manufacturer: Opt Lasers
Available quantity: 0 Item Items Lead Time: 4 weeks Last items in stock!
|Beam Diameter at Aperture||5 mm|
|Beam Height (Measured from Base)||30 mm|
|Capability for Cooling or Heating||TEC cooled|
|Divergence Full Angle||1,6 mRad|
|Driver Dimensions||75 x 45 x 39 mm|
|Input Voltage||7,5 V|
|Max. Modulation Frequency||100 kHZ|
|Modulation Input Voltage Range||0 - 5 V|
|Modulation Type||Analog / TTL|
|Operating Current Typ [A]||3 A|
|Operating Temp. Range||+15 to +30 °C|
80 mW green laser module with a wavelength of 520nm.
Microcontroller driving the laser module is responsible both for the soft start of the laser diode and the regulation of temperature by using a thermocouple. In addition, in the event when adequate heat dissipation of the module is not ensured, the system protects the diode from overheating, and when the temperature of the diode exceeds 40 degrees Celsius, it prevents further current flow through the diode and goes into alarm mode.
With a separate analog part of the laser diode power supply, the laser is able to modulate the beam in accordance with the analog input signal (0 - 5V) even at the frequency of up to 100 kHz.
The diode along with the entire optical system is mounted in a stylish housing which ensures both protection and cooling. To enable continuous work of the module, for example in a laser projector, it must be placed on an aluminum plate which allows for heat dissipation (thermal grease significantly improves the cooling of the module). It is a solution that not only saves space in the projector cabinet but also reduces the level from which the beam is emitted. This is aimed at meeting the demands of customers who more often than not look for compact high-power modules.
