X-Carve PLH3D-XT8 Laser Upgrade Kit
Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting
Includes: Laser Head, Air Nozzle, CNC Adapter Pro, Laser Safety Glasses, OptiShield Beam Cover, Mount and More.
|
|
|
LaserDock PRO - Estação de ancoragem magnética de laser para CNC |
|
|
|
LaserDock PRO - Apenas a parte lateral do laser |
|
|
|
LaserDock PRO - Apenas peça lateral CNC |
|
|
|
Seguro de 2 anos para colisão ou queda de cabeça de laser |
|
|
|
Janela de Segurança para Laser Azul |
Especificações: Potência ótica de 45W, ponto HD 125DPI 180um, espessura máxima de corte de madeira 20mm (¾")
Ideal para: Corte e gravação de ultra-alta velocidade tipo CO2, corte de materiais espessos
Fornece comunicação entre máquinas CNC e cabeças de laser.
Assegura uma camada adicional de segurança para os utilizadores e para as cabeças de laser.
Para alimentar as cabeças laser da série PLH3D através do adaptador PLH3D-CNC Pro.
Fornece uma saída fiável de 24V 8A.
Enviado com uma ficha compatível com as normas utilizadas no país de destino.
✔ Óculos de Segurança para Laser com OD 7+ no intervalo de 190 a 540 nm.
✔ Reduzem o risco de entrada de luz nos olhos do usuário proveniente de luz laser retroespalhada.
Suporte de alumínio para montagem da cabeça laser PLH3D-XT8 ou LaserDock Pro em máquinas CNC X-Carve.
Inclui um conjunto de parafusos.
Cabo para ligar as cabeças de laser da série PLH3D ou o LaserDock Pro ao adaptador PLH3D-CNC Pro.
Transfere sinais de alimentação e controlo para a cabeça do laser.
Reduz a reflexão da luz do material processado e assegura um arrefecimento ótimo da cabeça do laser.
Montável no bocal de assistência de ar de alta pressão.

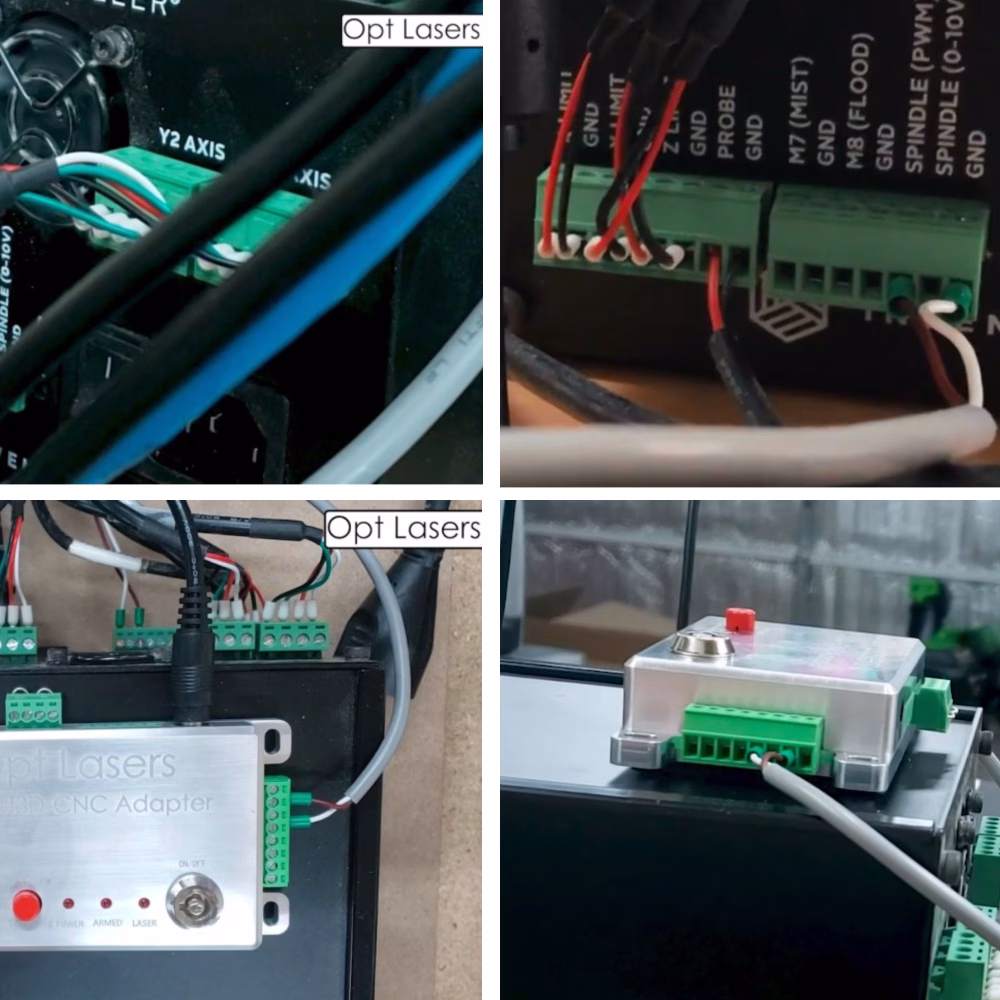

✔ Proporciona a conexão entre o Adaptador PLH3D-CNC e o X-Carve X-Controller.
Ferramenta compacta para ajustes fáceis e rápidos da distância focal para gravadores a laser da série PLH3D.
Conjunto de autocolantes para laser CNC.
Incluído em todos os kits laser da Opt Lasers.
Looking to upgrade your CNC machine with laser capabilities? Our Hyper-Performance XT8 CNC Cutting and Engraving Laser Heads are the ultimate solution. Crafted by the industry's leading manufacturer and concept creator of laser heads, our impressive XT8 laser heads deliver unparalleled performance.
The PLH3D-XT8 laser head incorporates Opt Lasers' patented multi-laser diode technology, driving its cutting-edge capabilities. This innovative approach ensures unparalleled performance and precision, setting a new standard in laser processing.

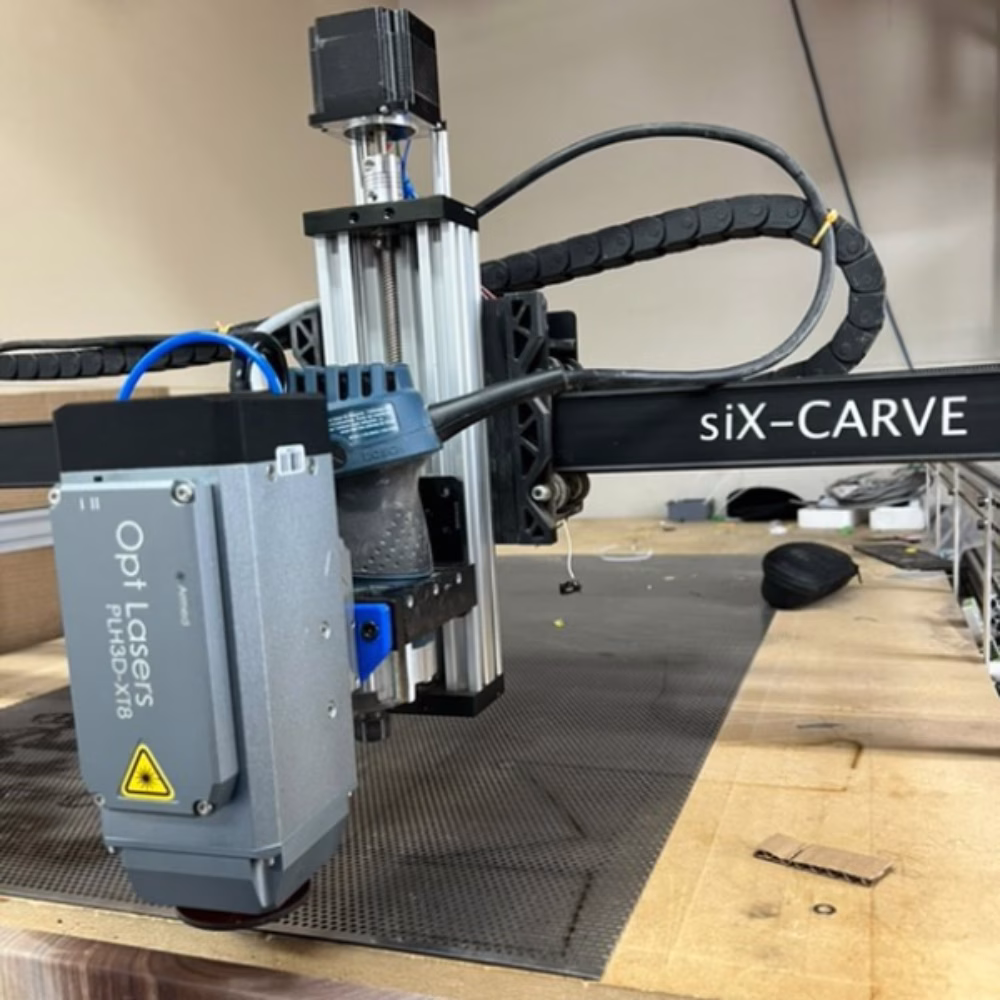

This comprehensive X-Carve kit includes all essential components such as Laser Safety Glasses, OptiShield Beam Cover, PLH3D-CNC Adapter Pro, and an aluminum mount for easy integration with X-Carve CNC machines. Furthermore, the kit is equipped with X-Carve signal cable, signal wires, and a PSU, ensuring compatibility with the X-Carve CNC controller.
Trust in the best – this kit is your all-in-one Plug&Play package, delivering top-notch performance and hassle-free setup for your machine, from us, Opt Lasers.
Click to see the XT8 in action!
Profundidade de foco incomparável: Com a sua notável profundidade de foco e cintura de feixe alongada, a XT8 elimina a necessidade de ajustes constantes e permite o corte numa única passagem, acelerando o seu trabalho.
Precisão em ação: O tamanho do ponto laser do PLH3D-XT8, inferior a 200 µm, permite obter detalhes precisos para trabalhos artísticos e cortar sem esforço materiais como madeira de 15 mm. Graças ao feixe altamente simétrico, o kerf (largura de corte) mantém-se igual em qualquer direção de varrimento.
Gravação em tons de cinzento e corte a potência total: Alterne entre dois modos: 50 % de potência para gravação detalhada ou corte em alta velocidade com 100 % de potência, adaptando-se rapidamente a diversos materiais e aplicações.

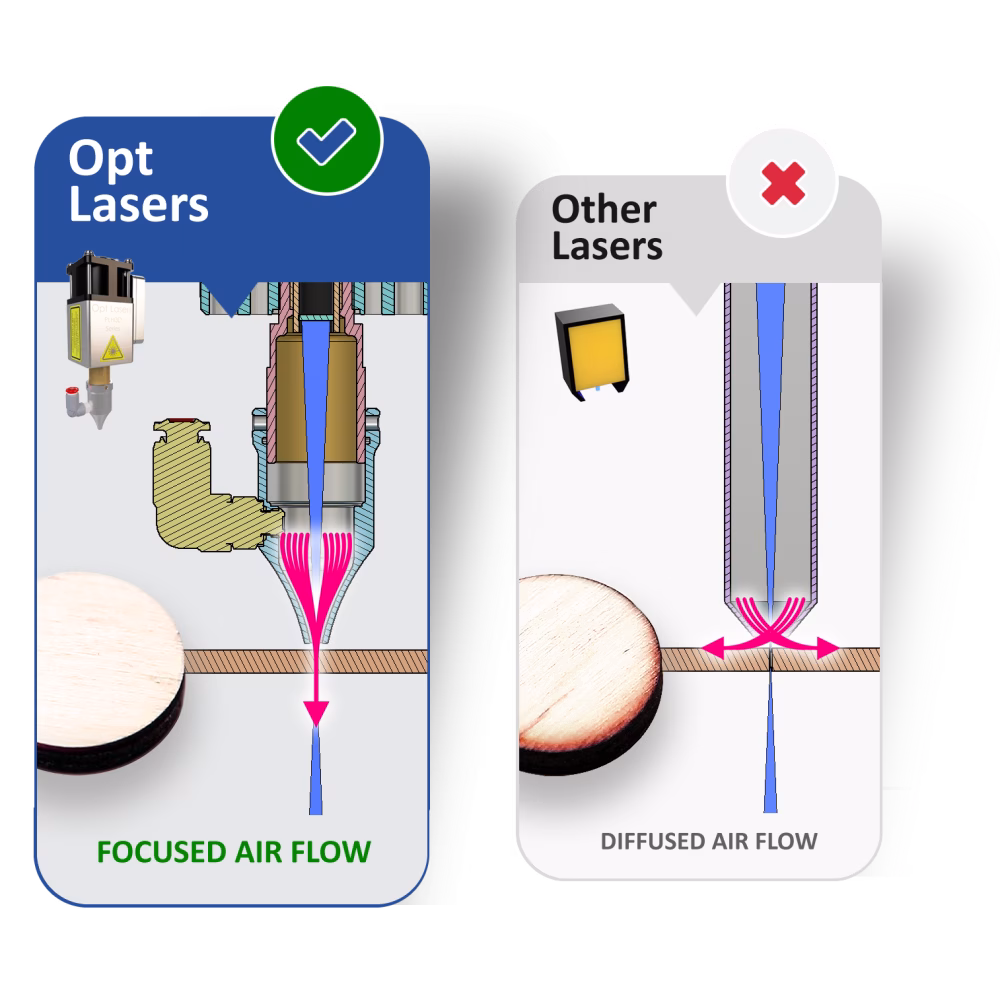

Bocal de assistência de ar integrado: Aumente a eficiência de corte com o nosso bocal integrado. Obtenha velocidades de corte até seis vezes superiores e reduza os danos térmicos no material processado. Também ajuda a manter a janela de proteção e a lente principal limpas.
Dissipador com heatpipes de cobre: A nossa tecnologia de arrefecimento avançada assegura um desempenho ótimo e grande longevidade, conduzindo o calor de forma eficiente para um dissipador adicional.
Segurança operacional: Mantenha-se informado com o nosso LED de sinalização, que indica o estado armado do laser e fornece alertas de sobreaquecimento para maior segurança e correta gestão da temperatura.

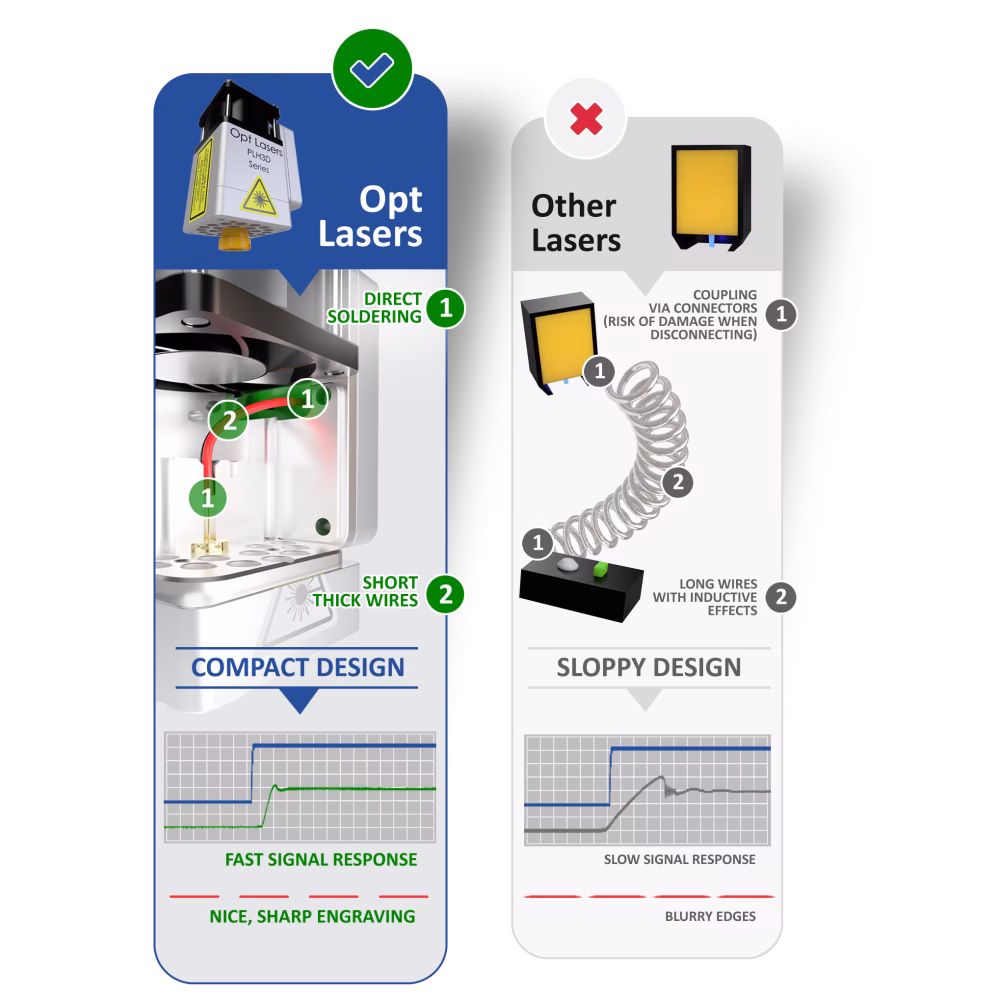

Controlador incorporado ultrarrápido: Experimente um desempenho ímpar com o nosso controlador integrado, garantindo gravações precisas e resultados fiáveis. A proximidade dos diodos laser ao controlador permite modulação de corrente de alta frequência.
Corpo totalmente metálico: A carcaça do laser é inteiramente construída em metal resistente, garantindo proteção robusta e maior durabilidade do dispositivo.
Poupe 10% ao adicionar o LightBurn ao seu kit XF+, XT-50 ou XT8.
Quando adquirido em conjunto com os nossos Kits Plug&Play, o LightBurn é fornecido a um preço promocional exclusivo — para começar desde o primeiro dia com as melhores ferramentas e o melhor valor global. Amplamente adotado por utilizadores de laser em todo o mundo, o LightBurn é a escolha mais popular da comunidade, com milhares de licenças vendidas.
O software LightBurn está disponível como acessório opcional com os nossos kits ou cabeças laser e é compatível com todos os módulos de corte e gravação da Opt Lasers — incluindo XT8, XT-50 e XF+. O software simplifica o seu fluxo de trabalho e fornece controlo preciso para resultados ótimos de corte e gravação. Pode adicioná-lo a partir da secção Accessories no topo da página.
Dica de compatibilidade: A compatibilidade do LightBurn depende do controlador de movimento/firmware da sua máquina (e não do próprio módulo laser). Funciona com a maioria dos controladores CNC disponíveis e inclui um pós-processador G-Code personalizado. Contudo, confirme antes da compra se o seu controlador é suportado.

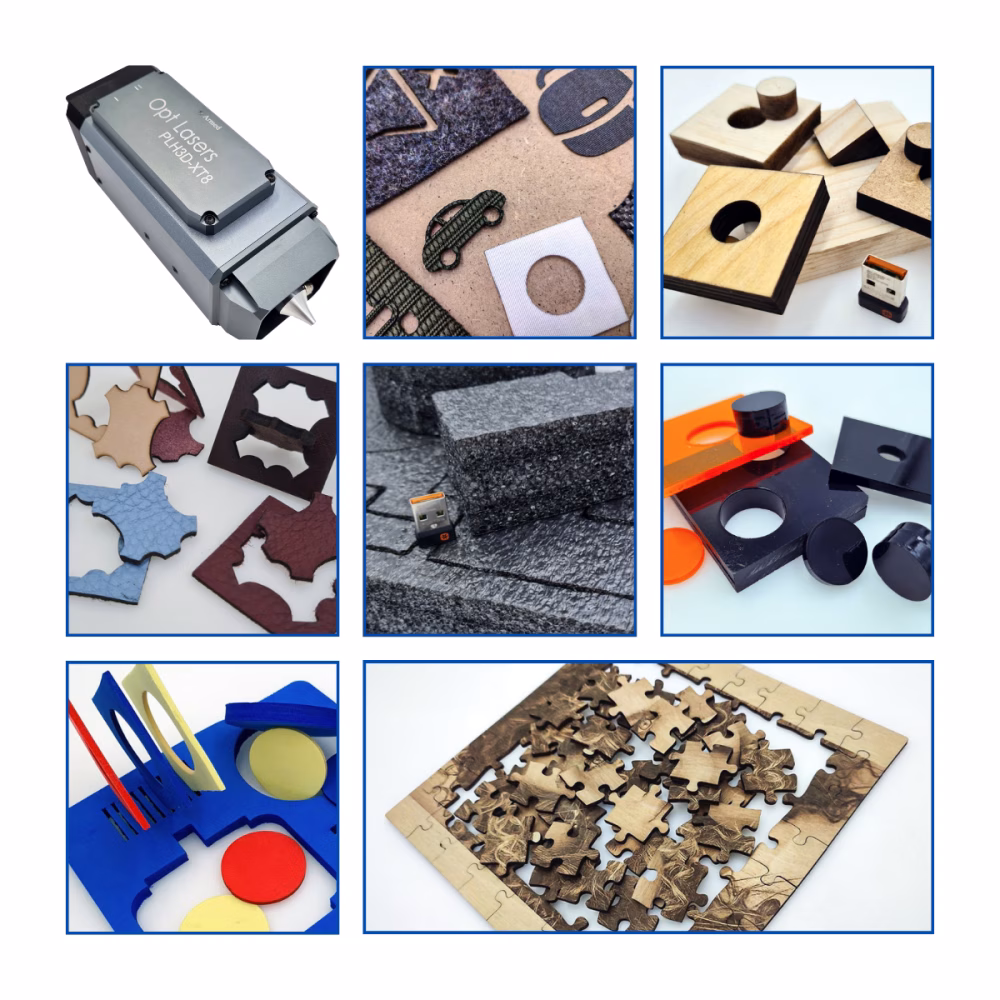

Quer trabalhe com madeira, polímeros, couro ou espuma, a combinação do LightBurn com o hardware da Opt Lasers garante resultados fiáveis, eficientes e de alta qualidade.
| PLH3D-XT8 | |
|---|---|
| Potência Óptica Máxima | 45 W |
| Tamanho Típico do Ponto (X × Y @ WD 21 mm) | ≈180 × 180 μm |
| Dimensões da Cabeça do Laser (C x L x A) | 76 x 89 x 194 mm (3 x 3,5 x 7,64 in.) |
| Peso da Cabeça do Laser, típ. | 1050g (2.31 lb.) Com LaserDock: 1230g (2.71 lb.) |
| Caudal da Ventoinha | 92 m3/h (53 CFM) |
| Ruído da Ventoinha | 58 dBA |
| Padrão dos Furos de Montagem | 5x 4 furos, 24 x 15 mm (0.94 x 0.59 in.) |
| Tipo de Furo de Montagem | M3 x 0.5 x 3 mm |
| Temperatura Ambiente Máxima | 40°C (104°F) |
| Entrada de Modulação | PWM/TTL, 0 – 24 V |
| Frequência Base Recomendada de PWM | 1 – 10 kHz |
| Largura de Banda Máxima de Modulação | 30 kHz |
| Impedância de Entrada de Modulação | >1 kΩ |
| Tensão da Fonte de Alimentação | 24 V |
| Corrente Mínima da Fonte de 24 V | 8 A |
| Consumo de Potência Máximo | 170 W |
| Material | Operation Type | Thickness | Speed | Laser Power | Passes |
|---|---|---|---|---|---|
| Wood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Engraving | N/A | 70 mm/s (165 inch/min) | 20% | 1 | |
| Plywood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 22.5 mm/s (53.1 inch/min) | 100% | 1 | |
| Cutting | 4 mm (0.157") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Cutting | 6 mm (0.236") | 6 mm/s (14 inch/min) | 100% | 1 | |
| Cutting | 10 mm (0.394") | 3 mm/s (7 inch/min) | 100% | 1 | |
| High-Density Fiberboard (HDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 3 mm (0.118") | 12 mm/s (28 inch/min) | 100% | 1 | |
| Medium-Density Fiberboard (MDF) | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 7.5 mm (0.295") | 4 mm/s (9.4 inch/min) | 100% | 1 | |
| Balsa | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 12 mm (0.472") | 40 mm/s (94 inch/min) | 100% | 2 | |
| Pinewood | Engraving | N/A | 350 mm/s (827 inch/min) | 100% | 1 |
| Cutting | 15 mm (0.591") | 3 mm/s (7 inch/min) | 100% | 1 | |
| Veg-Tan Top-Grain Pigskin Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 | |
| Hard Veg-Tan Full-Grain Cowhide Leather | Engraving | N/A | 3000 mm/s (7090 inch/min) | 100% | 1 |
| Engraving | N/A | 60 mm/s (142 inch/min) | 2% | 1 | |
| Cutting | 4 mm (0.157") | 18 mm/s (42.5 inch/min) | 100% | 1 | |
| PU (Polyurethane) Faux Leather | Cutting | 2 mm (0.079") | 50 mm/s (118 inch/min) | 100% | 1 |
| White Marble | (Deep) Engraving | N/A | 52 mm/s (120 inch/min) | 100% | 1 |
| Slate | Engraving | N/A | 140 mm/s (330 inch/min) | 100% | 1 |
| Black Acrylic | Cutting | 2 mm (0.079") | 7 mm/s (17 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 6 mm/s (14 inch/min) | 100% | 3 | |
| Cutting | 10 mm (0.394") | 6 mm/s (14 inch/min) | 100% | 4 | |
| Orange Transparent Acrylic | Engraving | N/A | 220 mm/s (520 inch/min) | 5% | 1 |
| Red Acrylic | Cutting | 2 mm (0.079") | 4.2 mm/s (9.9 inch/min) | 100% | 1 |
| Green Acrylic | Cutting | 2 mm (0.079") | 2.8 mm/s (6.6 inch/min) | 100% | 1 |
| Cotton | Engraving | N/A | 180 mm/s (425 inch/min) | 15% | 1 |
| Jeans | Cutting | 0.5 mm (0.0197") | 255 mm/s (602 inch/min) | 100% | 1 |
| High-Density Reinforced Nylon | Cutting | 3.6 mm (0.142") | 6 mm/s (14.2 inch/min) | 100% | 1 |
| White Polyester | Cutting | 0.2 mm (0.00787") | 60 mm/s (142 inch/min) | 100% | 1 |
| White High-Density Polyester | Cutting | 0.4 mm (0.0157") | 25 mm/s (59 inch/min) | 100% | 1 |
| Cordura | Cutting | 0.35 mm (0.0138") | 150 mm/s (354 inch/min) | 100% | 1 |
| Cutting | 0.5 mm (0.0197") | 95 mm/s (224 inch/min) | 100% | 1 | |
| Felt | Cutting | 4 mm (0.1575") | 70 mm/s (165 inch/min) | 100% | 1 |
| Polyfoam | Cutting | 40 mm (1.575") | 5 mm/s (12 inch/min) | 100% | 1 |
| Cutting | 40 mm (1.575") | 15 mm/s (35 inch/min) | 100% | 3 | |
| EVA Foam | Cutting | 3 mm (0.118") | 140 mm/s (331 inch/min) | 100% | 1 |
| Cutting | 5 mm (0.197") | 85 mm/s (201 inch/min) | 100% | 1 | |
| Polyurethane (PU) Foam | Cutting | 10 mm (0.394") | 88.5 mm/s (209 inch/min) | 100% | 1 |
| Carbon Fiber | Cutting | 0.5 mm (0.0197") | 15 mm/s (35.4 inch/min) | 100% | 1 |
| Glass Fiber | Cutting | 0.7 mm (0.0276") | 5 mm/s (11.8 inch/min) | 100% | 1 |
| Stainless Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 | |
| Tool Steel | (Deep) Engraving | N/A | 70 mm/s (165 inch/min) | 25% | 1 |
| (Deep) Engraving | N/A | 280 mm/s (661 inch/min) | 100% | 1 | |
| Marking | N/A | 865 mm/s (2040 inch/min) | 100% | 1 |
