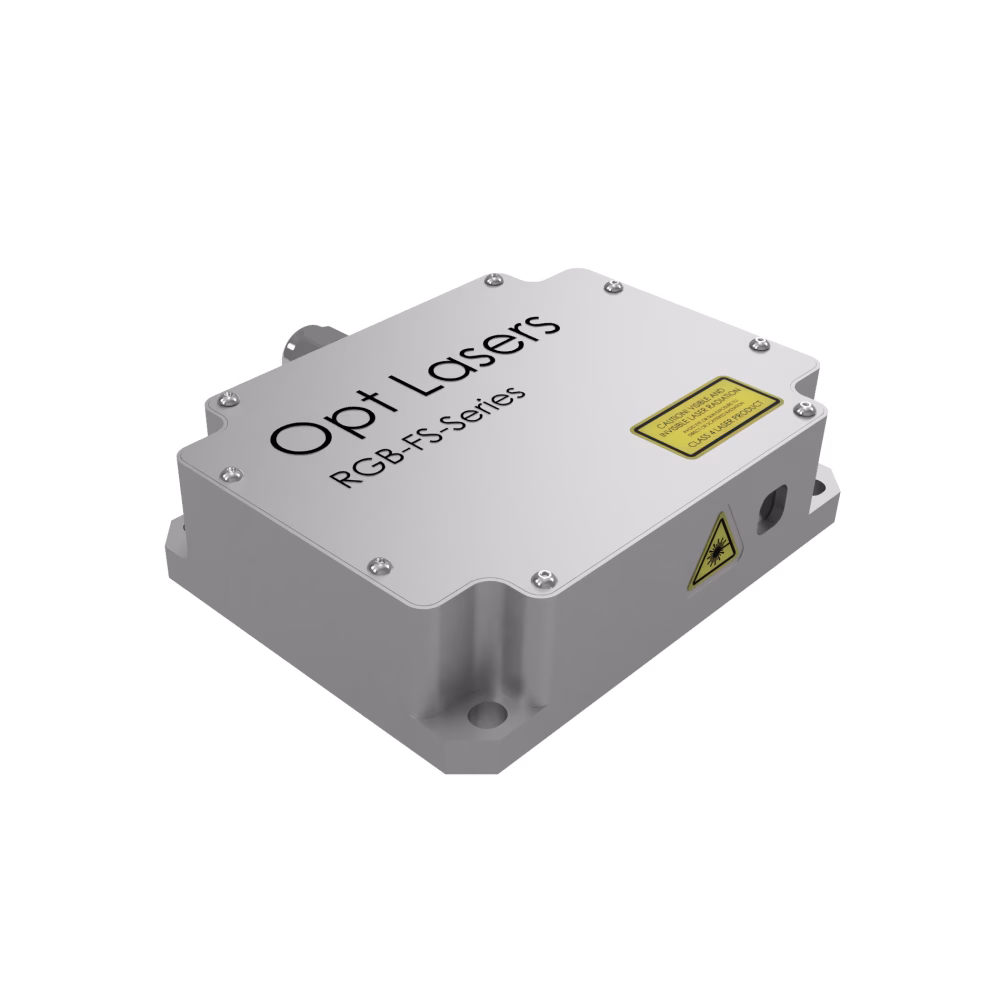

RGB-FS-Series Laser Module
Opt Lasers' RGB-FS-Series laser modules are built with multiple edge emitting laser diodes inside. These series use spatial, polarization, and spectral beam combining techniques for achieving both high quality and power output beams.
Technical data
Manufacturer
Beam Diameter at Aperture
5.5 x 5.5 mm
Divergence Full Angle
1.0 x 1.8 mRad
Power @ 20°C 450nm Laser
2000 mW
Power @ 20°C 520nm Laser
1200 mW
Power @ 20°C 638nm Laser
1200 mW
Estimated lifetime
10 000 hours
Beam size
5.5 x 5.5
Modulation Input 1
0 - 5V Analog/TTL/PWM
Max. Modulation Bandwidth
30 kHz
Rise Time
less than 1.5µs
Fall Time
less than 1.5µs
Noise and Ripple (RMS)
12.5 mA
Product description
Customizable laser modules features
- Output Power
- Emitted Wavelength
- Beam Size
- Beam Quality and Uniformity
- Dimensions and Weight
- Operating Temperature Range
- Modulation Input and its bandwidth
- Private Labeling
- Packaging, mounting
