1 x PLH3D-XT-50 专用雕刻激光头
规格 6W 光功率，超高清 550DPI 45um 光斑，最大木材切割厚度 3 毫米（⅛"）
最适合 非常精细的雕刻、薄材料切割
包括 激光头
减价！
用于 X-Carve CNC 的 XT-50 6W 即插即用激光套件
X-Carve PLH3D-XT-50 激光升级套件
规格 6W 光学功率，超高清 550DPI 45um 光斑，最大木材切割厚度 3 毫米（⅛"）
最适合 精细雕刻、薄材料切割
包括 激光头、PLH3D-CNC 适配器、支架和螺钉、电源、接线、空气喷嘴、高度基准工具
- 阅读评论 (31)
006391
5902693112389
Frequently Bought Together
|
|
|
$179.10 $125.37 |
|
|
|
$99.00 $69.30 |
|
|
|
$99.00 $69.30 |
|
|
|
$29.00 $20.30 |
Insurance Options
|
|
|
$249.00 $224.10 |
CNC Machine Control Software
|
|
|
$99.00 $89.10 |
Additional Safety Accessories
|
|
|
$187.00 $130.90 |
Spare Accessories
|
|
|
$70.00 $49.00 |
|
|
|
$5.00 $3.50 |

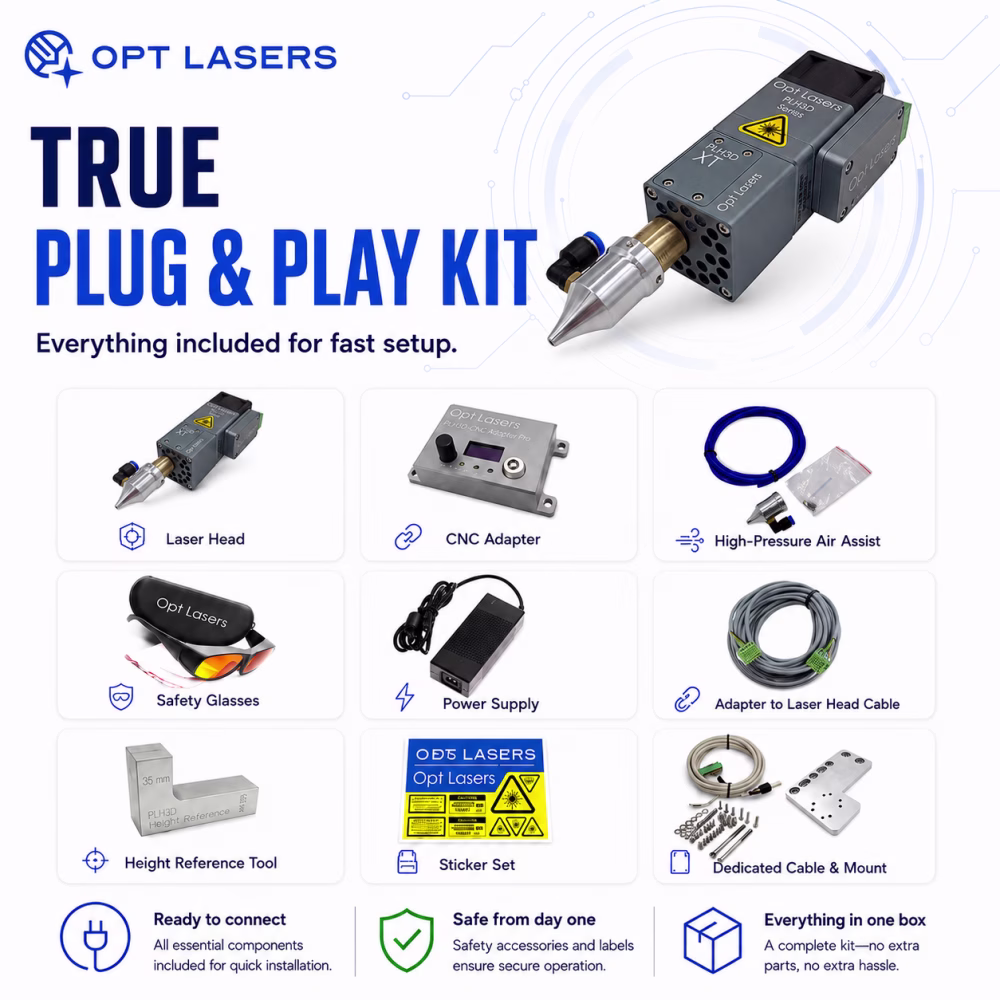

包装样式
-
-
1 x PLH3D-CNC 适配器专业版
✔ 提供数控机床和激光头之间的通信。
✔ 为用户和激光头提供额外的安全保障。
-
1 x 用于 XT 系列的高压空气辅助喷嘴套件
✔ XT 系列激光头的高性能附件。
✔ 可将激光加工速度提高 6.5 倍，并减少热量对材料造成的损坏。
✔ 保护激光光学镜组免受烟雾和碎片的伤害。
-
1 x 激光防护眼镜
✔ 激光防护眼镜，OD 7+，覆盖波长范围 190 至 540 nm。
✔ 降低背散射激光光线进入用户眼睛的风险。
-
1 x X-Carve 支架适配 PLH3D 系列
✔ 用于在 X-Carve 与 Shapeoko CNC 设备上安装 PLH3D-6W 系列激光头或 LaserDock 的铝制安装支架。
✔ 随附一套螺钉。
-
1 x 用于 PLH3D-CNC 的 19V 2.5A 桌面电源适配器，带 US/UK/EU/AU 墙式插头
✔ 通过 PLH3D-CNC 适配器为 PLH3D-6W 系列激光头供电。
✔ 提供可靠的 19V 2.5A 输出。
✔ 包括墙壁插头适配器。
-
1 x PLH3D-CNC适配器至激光头专用线缆（5x22AWG 5.5米/18英尺）
✔ 实现PLH3D-CNC适配器与PLH3D-6W系列激光头之间的电源与信号连接。
✔ 配备5针可拆卸端子连接器。
-
1 x PLH3D-CNC适配器用X-Carve信号线
✔ 实现PLH3D-CNC适配器与X-Carve X-Controller之间的连接。
-
1 x PLH3D 高度参考工具
✔ 结构紧凑的工具，用于简单快速地调整 PLH3D 系列激光雕刻机的焦距。
-
1 x 一套 CNC 激光贴纸
✔ 一套 CNC 激光贴纸。
✔ Opt Lasers 的每个激光套件中都包含。
下载
产品描述
PLH3D-XT-50 激光头：多年来的终极产品
不错的选择！这款全面的 X-Carve CNC 激光附加组件配有 XT-50 激光头，可以说是市场上最好的单激光二极管激光切割机和雕刻机，是您的 X-Carve CNC 机器的完美补充。它包含 X-Carve CNC 数控机床所需的一切--从 X-Carve CNC 控制器的即插即用电子设备，到机械安装，再到激光安全设备。
激光雕刻木材不需要更高的激光功率。PLH3D-XT-50 可以毫不费力地对木材进行激光雕刻，同时以常用数控机床的最高工作速度移动。此外，XT-50 激光雕刻具有超高清分辨率，即使聚焦光束光斑再小，您的眼睛也看不出任何差别。
PLH3D-XT-50 激光头是 CO2 CNC 激光器的最佳替代品，可用于特殊雕刻层压板、激光箔片和许多标准材料，如木材、橡胶、纸板、织物、皮革、喷漆/阳极氧化金属。XT-50 激光器还非常适合在不锈钢和钛金属上打标。
[htmlboxpro:2］
[htmlboxpro:46］
PLH3D-XT-50 切割和雕刻激光头的功能和优点详情
可调、微观和方形光束光斑 25 - 500 DPI- XT-50 激光头的光束光斑可调，完美聚焦时低于 50µm。调节高度可将光斑尺寸增加到 2 毫米，从而实现超过 500 DPI 的超高清分辨率或低至 25 DPI 的大规模雕刻。
高功率密度- XT-50 激光头的光束光斑尺寸小，功率密度高，切割和雕刻速度更快。例如，XT-50 可以雕刻（而不仅仅是标记）不锈钢和工具钢。
切割和雕刻--PLH3D-XT-50 蓝色激光可切割和雕刻各种材料，如木材、纸板、橡胶、纸张、纺织品、皮革、塑料、轻木、胶合板等，还可标刻不锈钢、钛和低导热亚型钢材。
更高的安全性- 切割和雕刻激光头配备了 "已就绪 "LED 指示灯，可发出与电源连接的信号，并提供过热警报。此外，环境温度警告可确保操作安全。
出厂时设置好的透镜- 每个激光头在出厂时都配有一个高分辨率三重透镜，调整后的焦距为 60.0 毫米。这个距离是最佳的优化对焦距离。
内置驱动器- 激光二极管与驱动器之间的短路连接可确保更好地保护二极管、实现高频电流调制的可能性以及消除接通时的电感效应。
无需额外冷却- 这种轻型激光器无需额外冷却。XF+ 激光器的机身就像一个散热器，使其能够每天 24 小时持续工作。
市场上精度最高的激光头- 由于采用了特殊的光学设计，XT-50 可以达到最高精度，为精细加工提供无与伦比的精确度。
PLH3D-XT-50 的附件
LaserDock 磁性基座
(可选附件，在页面顶部添加）
- 快速将激光器连接到数控机床或从数控机床断开连接。
- 保护激光装置不受油污、金属颗粒和灰尘的影响。
- 包括一个铝盖，在不使用时可保护底座
PLH3D-CNC 适配器 Pro
(包括在即插即用套件中）
- 轻松连接到任何数控机床。
- 将机床信号转换为与激光头兼容的标准信号。
- 为用户和激光头提供额外的安全保障。
激光安全眼镜
(包含在即插即用套件中）
- 为防止蓝光激光照射提供重要的保护层。
- 有效降低漫反射激光辐射的潜在危害。
- 提供 50%的可见光透射率，清晰可见。
CNC 安装、电源、连接线
(包含在即插即用套件中）
- 坚固的铝制支架，用于牢固安装激光头或基座。
- 高质量、低噪音电源。
- 无缝连接所需的所有接线。
高压空气辅助喷嘴
(包含在即插即用套件中）
- 将激光加工速度提高 6.5 倍。
- 减少热量对材料的损害。
- 保护激光光学器件免受烟雾和碎片的伤害。
激光安全窗
(可选附件，在页面顶部添加）
- 数控机床外壳的理想选择。
- 阻挡深紫外线、蓝光和绿光。
- 提高周围环境的安全性。
应用示例
PLH3D-XT 系列雕刻激光头可满足最大的要求，广泛满足您对软质和硬质材料的加工需求。
异常精确的金属雕刻
PLH3D-XT 系列雕刻激光头是专为高分辨率雕刻和超细线切割薄材料而设计的专用激光头系列。在 6W 系列激光头的基础上，XT 系列激光头继承了其所有优点：多功能性、紧凑尺寸和高速驱动。微小的光束光斑可以在包括不锈钢在内的多种材料上进行精确的小尺寸雕刻。
| 不锈钢 | ||||
| 操作 | 进给速度 | 气流 | ||
| 雕刻 | 5mm/s (11.8 IPM) | 5 升/分钟 | ||
超高清瓷砖雕刻
500 DPI 的能力可在瓷砖等材料上实现令人惊叹的雕刻质量。更高的功率密度为切割和雕刻提供了新的可能性。此外，切割和雕刻过程的速度明显快于不带变形光学镜组的激光头。
| 瓷砖 | ||||
| 操作 | 进给速度 | DPI | ||
| 雕刻 | 2500/min | 423 | ||
在软质材料上进行高端精细雕刻和切割
PLH3D-XT-50 激光头的光斑宽度小于 50µm，因此可以切割出纤细、均匀的切割线。相比之下，一个典型的人体红细胞的大小为 5-10 微米，而一根头发的直径为 50-200 微米。
| 煤炭双工 | ||||
| 操作 | 厚度 | 进料速度 | 气流 | |
| 切割 | 1 毫米（0.0393 英寸） | 500 毫米/分钟 | 10-20 升/分钟 | |
其他 PLH3D-XT-50 应用图库
产品技术规格
| PLH3D-XT-10 | PLH3D-XT-50 | |
|---|---|---|
| 光输出功率 | 0.5W | 6.0W |
| 波长 | 405 | 450 |
| >光束光斑尺寸 | 10 微米 x 4 微米 | 50 微米 x 4 微米 |
| 激光雕刻应用的分辨率 | 3100 DPI | 500 DPI |
| 激光头尺寸（长 x 宽 x 高） | 40 x 55 x 140 毫米 （1.6 x 1.7 x 5.51 英寸） |
|
| 激光头重量（典型值 | 300g | |
| 风扇流量 | 43 立方米/小时（25 立方英尺/分钟） | |
| 风扇噪音 | 58 分贝 | |
| 安装孔型 | 4 个孔，24 x 15 毫米 （0.94 x 0.59 英寸） |
|
| 安装孔类型 | M3 x 0.5 x 4.5 毫米 | |
| 最高环境温度环境温度 | 40°C (113°F) | |
| 调制输入 | 2 | |
| 调制输入 1 | 模拟/TTL/PWM， 0 - 5 V |
|
| 调制输入21 | TTL/PWM 0 - 24 V | |
| 建议 PWM 基准频率 | 5 - 10 kHz | |
| 最大调制带宽调制带宽 | 30 千赫 | |
| 1 和 2 的输入阻抗 | >1 k-Ω | |
| 电源电压 | 12 - 24 V | |
| 12 V PSU Min.电流 | 2.5 A | |
| 24 V PSU 最小电流电流 | 1.25 A | |
| 最大功耗功耗 | 20 W | 30 W |
