1 x PLH3D-XT-50 彫刻専用レーザーヘッド
スペック 6W 光学パワー、Ultra HD 550DPI 45um スポット、最大木材切断厚3 mm (⅛)
最適な用途 非常に詳細な彫刻、薄い材料の切断
付属品 レーザーヘッド
数量:
合計:
商品の合計: (税抜)
送料合計: 未定
合計: (税抜)
X-Carve Pro PLH3D-XT-50 レーザーアップグレードキット
スペック 光出力6W、超高解像度550DPI 45umスポット、最大木材切断厚さ3 mm (⅛)
最適な用途 非常に詳細な彫刻、薄い材料の切断

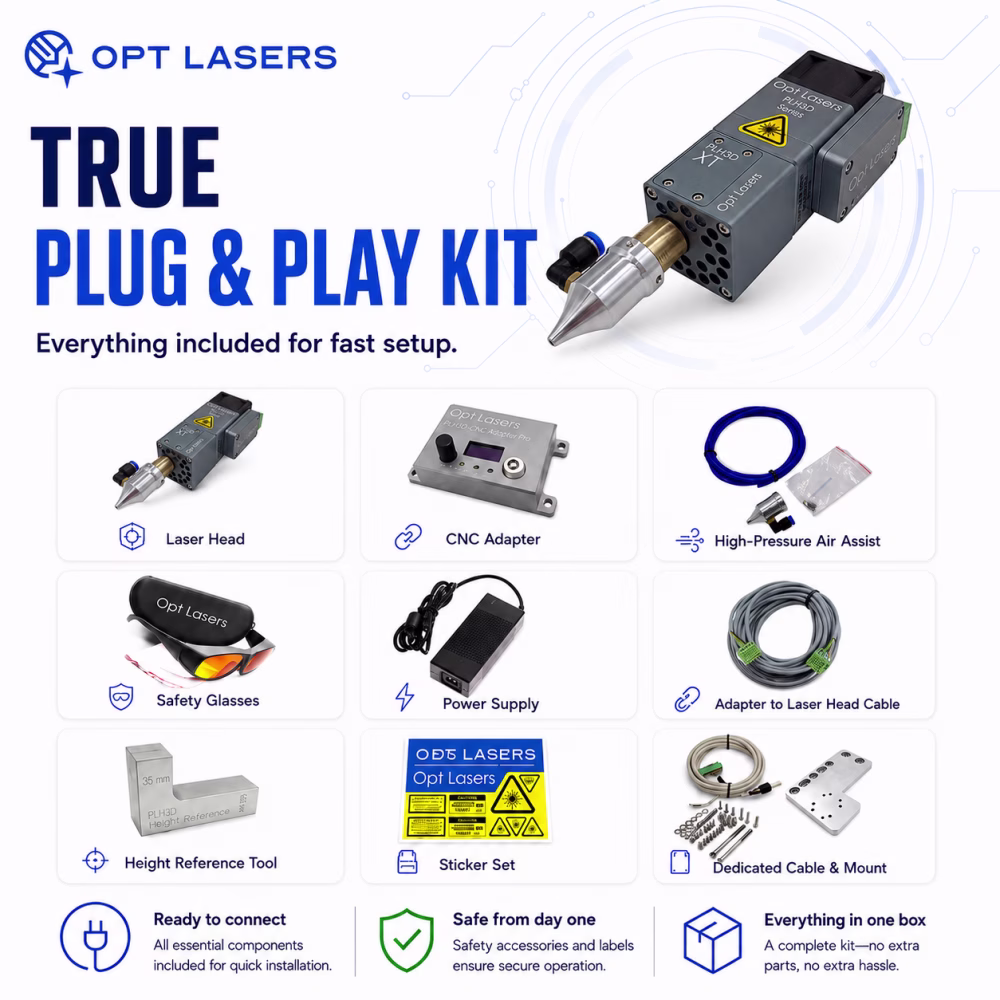

付属品 レーザーヘッド、PLH3D-CNCアダプター、マウントとネジ、PSU、配線、エアーノズル、高さ基準ツール
受注生産可
|
|
|
LaserDock PRO - レーザーとCNCの磁気ドッキングステーション |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OptiShield - PLH3Dレーザー彫刻機ビームカバー |
スペック 6W 光学パワー、Ultra HD 550DPI 45um スポット、最大木材切断厚3 mm (⅛)
最適な用途 非常に詳細な彫刻、薄い材料の切断
付属品 レーザーヘッド
CNCマシンとレーザーヘッド間の通信を提供します。
ユーザーとレーザーヘッドの安全性をさらに高めます。
XTシリーズレーザーヘッド用パフォーマンスアクセサリー。
レーザー加工速度を最大6.5倍向上させ、材料への熱による損傷を減少させます。
煙や破片からレーザー光学系を保護します。
✔ 190nm~540nmの範囲でOD7+に定格されたレーザー安全メガネ。
✔ 反射レーザー光による光がユーザーの眼に入るリスクを低減します。
PLH3D-CNC アダプター経由で PLH3D-6W シリーズのレーザーヘッドに電力を供給します。
信頼性の高い19V 2.5A出力を提供します。
ウォールプラグアダプター付き。
✔ PLH3D-CNCアダプタとPLH3D-6Wシリーズレーザーヘッド間の電源供給および信号接続を提供します。
✔ 5ピン着脱式端子コネクタを備えています。
✔ PLH3D-CNCアダプターとX-Carve X-Controller間の接続を提供します。
PLH3Dシリーズレーザー彫刻機の焦点距離を簡単かつ迅速に調整するコンパクトツール。
CNCレーザーステッカーのセット。
Opt Lasersのすべてのレーザーキットに含まれています。
素晴らしい選択!この包括的なX-Carve Pro CNCレーザーアドオンキットは、市場で最高のシングルレーザーダイオードレーザーカッターおよび彫刻機であるXT-50レーザーヘッドを搭載しており、X-Carve Pro CNCマシンに最適です。X-Carve Pro CNC コントローラー用のプラグアンドプレイ電子機器から、メカニカルマウント、レーザー安全装置まで、X-Carve Pro CNC マシンに必要なものがすべて含まれています。
木材のレーザー彫刻に高いレーザー出力は必要ありません。PLH3D-XT-50は、一般的なCNCマシンの最高動作速度で動かしながら、木材を楽にレーザー彫刻することができます。さらに、XT-50レーザーはUltra HD解像度で彫刻を行い、集光ビームスポットがこれ以上小さくなっても、あなたの目には違いは見えません。
PLH3D-XT-50 レーザーヘッドは、CO2 CNC レーザーの優れた代用品であり、特殊な彫刻ラミネート、レーザー箔、および木材、ゴム、段ボール、布地、革、塗装/陽極酸化金属などの多くの標準的な材料で作業できます。XT-50レーザーは、ステンレス鋼やチタンのマーキングにも最適です。

[htmlboxpro:46]

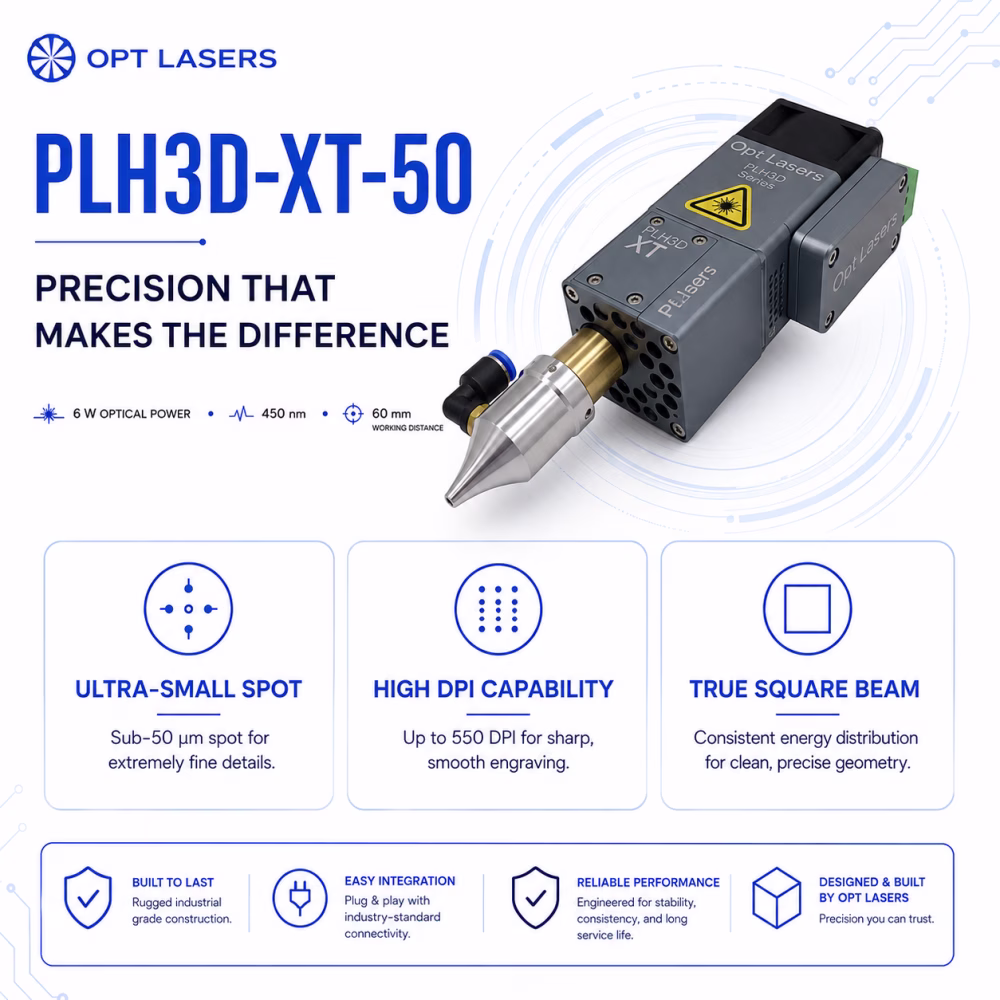

調整可能、微小および正方形のビームスポット 25 - 500 DPI- XT-50レーザーヘッドは、完全な焦点で50µm以下の調整可能なビームスポットを備えています。高さを調整することで、スポットサイズを最大 2mm まで拡大し、500 DPI を超える超高解像度または 25 DPI までの大規模な彫刻を可能にします。

高出力密度- XT-50レーザーヘッドは、小さなビームスポットサイズを実現することで、出力密度を高め、より高速な切断や彫刻を可能にします。例えば、XT-50はステンレス鋼や工具鋼を彫刻することができます(印を付けるだけではありません)。

切断と彫刻- PLH3D-XT-50青色レーザーは、木材、厚紙、ゴム、紙、織物、皮革、プラスチック、バルサ、合板など、さまざまな材料の切断と彫刻が可能です。

安全性の向上- 切断および彫刻レーザーヘッドには、電源への接続を示す「武装」表示LEDが装備されており、過熱を警告します。さらに、周囲温度の警告により、安全な操作が保証されます。

工場出荷時設定レンズ- 各レーザーヘッドには、60.0 mm に焦点が合うように調整された高解像度トリプレットレンズが付属しています。この距離は、最初に最適化された焦点距離です。

内蔵ドライバー- レーザーダイオードとドライバーの接続を短くすることで、ダイオードの保護、高周波電流変調の可能性、スイッチオン時のインダクタンス効果を排除しています。

追加冷却不要- この軽量レーザーは、追加冷却を必要としません。XF+レーザーの本体がヒートシンクとして機能するため、毎日24時間絶え間なく働き続けることができます。

市場で最も精密なレーザーヘッド- 特別な光学設計により、XT-50は最高の精度を達成し、詳細な作業に比類のない精度を提供します。

(オプションアクセサリー。)

(プラグ&プレイキットに付属)

(プラグ&プレイキットに含まれる)

(プラグ&プレイキットに含まれます)

(プラグ&プレイキットに付属)

(オプションアクセサリー、ページ上部で追加)

PLH3D-XTシリーズ彫刻用レーザーヘッドは、軟質材料から硬質材料までの幅広い加工ニーズにお応えします。
PLH3D-XTシリーズ彫刻レーザーヘッドは、非常に高い解像度で彫刻し、薄い材料を極細線で切断するための専用レーザーヘッドシリーズとして考案されました。当社の6Wシリーズレーザーヘッドをベースに、XTシリーズレーザーヘッドは、汎用性、コンパクトサイズ、高速ドライバといった長所をすべて継承しています。微細なビームスポットにより、ステンレスを含む様々な素材に精密かつ極小サイズの彫刻を施すことができます。
| ステンレス | ||||
| 動作 | 送り速度 | エアフロー | ||
| 彫刻 | 5mm/s (11.8 IPM) | 5L/分 | ||
500 DPIの能力により、セラミックタイルのような素材に驚くべき品質の彫刻が可能です。より高い出力密度は、新たな切断と彫刻の可能性を明らかにします。さらに、アナモルフィック光学系なしのレーザーヘッドと比較して、切断および彫刻プロセスが大幅に高速化します。
| セラミックタイル | ||||
| 動作 | 送り速度 | DPI | ||
| 彫刻 | 2500/分 | 423 | ||
PLH3D-XT-50レーザーヘッドのスポット幅は50µm未満であるため、薄く均一なカットラインで切断することができます。比較のため、一般的な人間の赤血球の大きさは5~10µmで、髪の毛1本の直径は50~200µmです。
| 石炭二重 | ||||
| 動作 | 厚さ | 送り速度 | エアフロー | |
| 切断 | 1mm (0.0393") | 500mm/分 | 10~20L/分 | |
| PLH3D-XT-10 | PLH3D-XT-50 | |
|---|---|---|
| 光出力 | 0.5W | 6.0W |
| 波長 | 405 | 450 |
| >ビームスポット径 | 10 µm x 4 µm | 50 µm x 4 µm |
| レーザー彫刻アプリケーションの解像度 | 3100 DPI | 500 DPI |
| レーザーヘッドの寸法(長さ x 幅 x 高さ) | 40 x 55 x 140 mm (1.6 x 1.7 x 5.51 in.) |
|
| レーザーヘッド重量 | 300g | |
| ファン流量 | 43 m3/h (25 CFM) | |
| ファン騒音 | 58 dBA | |
| 取り付け穴パターン | 4穴、24 x 15 mm (0.94 x 0.59インチ) |
|
| 取り付け穴タイプ | M3 x 0.5 x 4.5 mm | |
| 最高使用温度最大周囲温度 | 40°C (113°F) | |
| 変調入力 | 2 | |
| 変調入力1 | アナログ/TTL/PWM、 0 - 5 V |
|
| 変調入力21 | TTL/PWM 0 - 24 V | |
| 推奨PWMベース周波数 | 5 - 10 kHz | |
| 最大変調帯域幅変調帯域幅 | 30 kHz | |
| 1と2の入力インピーダンス | >1 k-Ω | |
| 電源電圧 | 12 - 24 V | |
| 12 V PSU Min.電流 | 2.5 A | |
| 24 V PSU Min.電流 | 1.25 A | |
| 最大消費電力最大消費電力 | 20 W | 30 W |
